Adding a QuickView Portlet

  1. In DivePort, browse to the page where you want to add the portlet.

  2. On the DivePort toolbar, click Edit to unlock the page and enable edit mode.

    The Edit menu item is replaced with edit tools, including a page context menu chevron.

  3. On the toolbar, click the chevron.
  4. On the page context menu, click Add a Portlet.

  1. On the Add Portlet page, double-click QuickView Portlet.

    The Edit QuickView Portlet Closeddialog box opens.

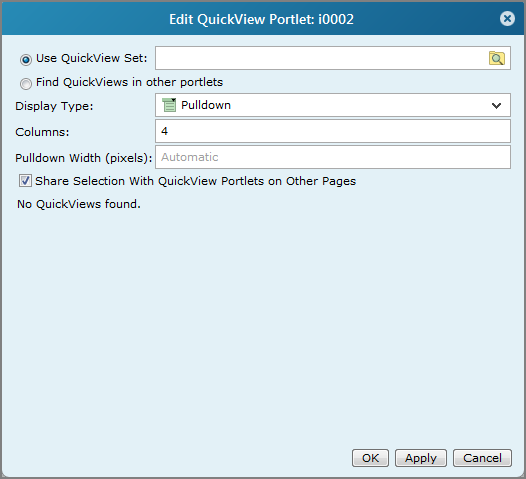

    An example of an edit QuickView portlet dialog box showing the default settings.

  2. Do one of the following:

    • If you want to use a Spectre QuickView set, select Use QuickView Set, click the browse icon Browse icon looks like a folder with a magnifying glass on it. to browse to and select the project that holds the QuickView Set that you want to use, and then click OK.

    • If you want to use QuickViews that are saved in markers in other portlets on the page, select Find QuickViews in other portlets.

      Spectre qvset files can be used with both Spectre Dive files and ProDiver markers that use cPlans. However, marker-based qvs files are not supported with cBase and cPlans.

    A section for adding QuickViews is added to the Closeddialog box.

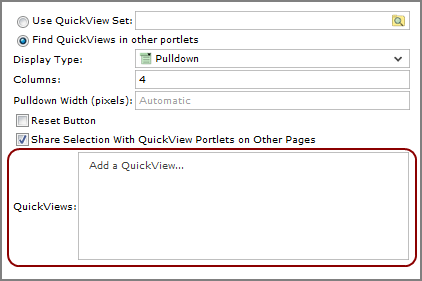

    An example of an edit quickview dialog box, showing the add a quickview location.

  3. Click Add a QuickView.

    The Select QuickViews Closeddialog box opens, listing available options.

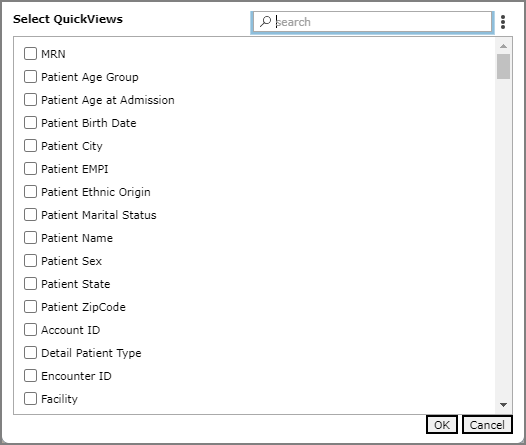

    An example of the select QuickViews page.

    NOTE: If you have a Measure Factory license and the factory configuration file includes a time range, you can select Time Range from the list to create a Time Range QuickView. This QuickView is populated with the rolling month ranges specified in the factory configuration file.

  4. Select the QuickViews that you want to add to the portlet, and then click OK.

    The QuickView settings page opens, which you can use to customize the QuickView label.

  5. On the Edit QuickView Portlet dialog box, you can edit the QuickView display type and width, number of columns, and other options. QuickViews display in the order that they are listed. You can use a drag-and-drop operation to change the order. For more information, see QuickView Portlet Options.

  6. Click OK to save the QuickView portlet options and close the dialog box.

    The QuickView portlet is added to the page.

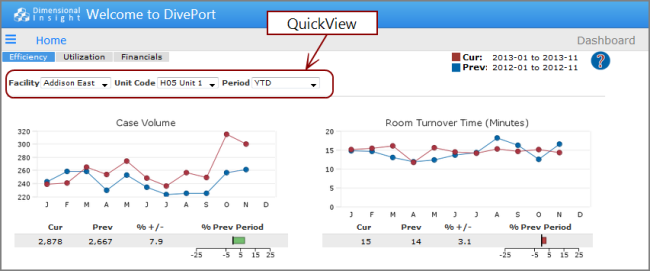

    QuickView portlet on a DivePort page.

  7. On the toolbar, click Save to save the changes and exit edit mode.
