About Indicator Thresholds

Many DivePort indicators use zones to define whether a measure, metric, or KPI meets, exceeds, or fails to meet organizational goals. Thresholds define the borders between these zones.

DivePort uses these threshold settings to divide the indicator into ranges. Typically, there are two threshold levels and three ranges. ClosedExample

Graphic showing a two-threshold, three-color graph.

You can set properties in some indicators to create more color zones by defining additional thresholds. ClosedExample

Graph showing four thresholds and five color ranges.

When creating indicators that use threshold settings, you must specify at least one threshold either manually or by identifying a data source or macro. A data value is compared to the thresholds, and the indicator is drawn accordingly.

  • If you set only one threshold: By default, the indicator for values less than the threshold are red, and values greater than or equal to the threshold are green. For example if you set a single value of 10, the indicators for values < 10 are red, and values ≥ 10 are green.

    How DivePort interprets a single threshold setting of 10.

  • If you set two thresholds: By default, the indicator for values less than the lowest threshold are red, mid-range values are yellow, and values greater than or equal to the highest threshold are green.

    How DivePort colors indicators when two threshold values are specified.

  • If you set more than two thresholds: By default, the indicator for values less than the lowest threshold are red, values greater than or equal to the highest threshold are green, and mid-range values are assigned colors in between.

    Default color settings for multiple threshold values.

  • On horizontal bullet indicators and vertical bullet indicators, threshold colors are applied to the indicator background.Bar chart with a 600000 threshold.

The default colors assume that a higher number is considered good, and lower numbers are bad. However, if you are measuring data whose goal is less than the threshold value, and numbers higher than the threshold are not wanted, you can select the Reverse colors option on the indicator column setting dialog box. Additionally, you can customize indicator colors on the threshold settings page.

NOTE: If the data value is null, the indicator column for that value renders blank.

TIP: If you want to show only low- and high-range indicators (do not show mid-range indicators) on a two-level threshold range, you can set the mid-range color to be transparent.

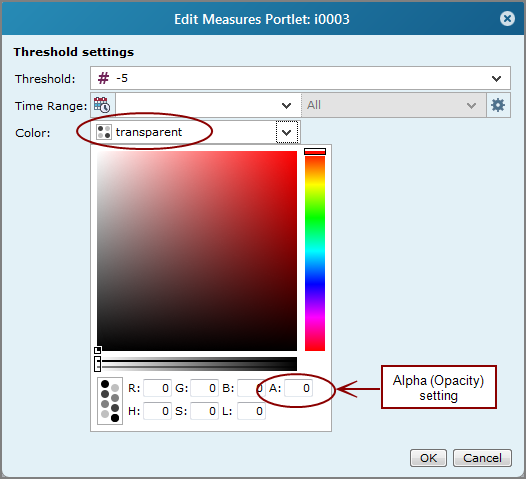

On the Threshold settings Closeddialog box, set the mid-range threshold color opacity to 0.

Measure Factory license:

Threshold settings dialog box, showing the color opacity option.

Standard license:

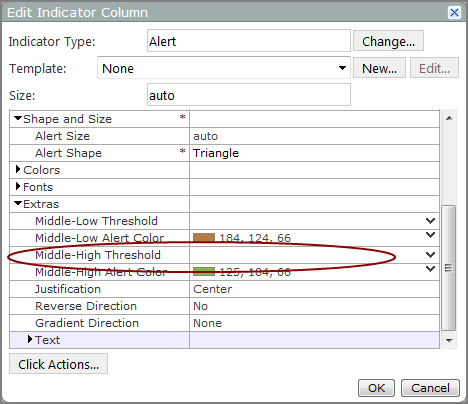

On the Edit Indicator Column Closeddialog box, under Extras, do not select a Middle-High Threshold Color.

Edit Indicator Column dialog box for standard licenses.

Axes Scale Range

By default, DivePort uses the source data to determine the high and low values of the axes scale. However, in the Axes Settings dialog box, you can specify Scale Minimum and Scale Maximum values to provide a consistent view.
