Build cBase Process Node

A Build cBase node is a Production process node that runs the Spectre Build application to create one or more cBases as prescribed by the attributes.

Production Build cBase Node

The Build cBase node has Closedfour panes where you set attributes.

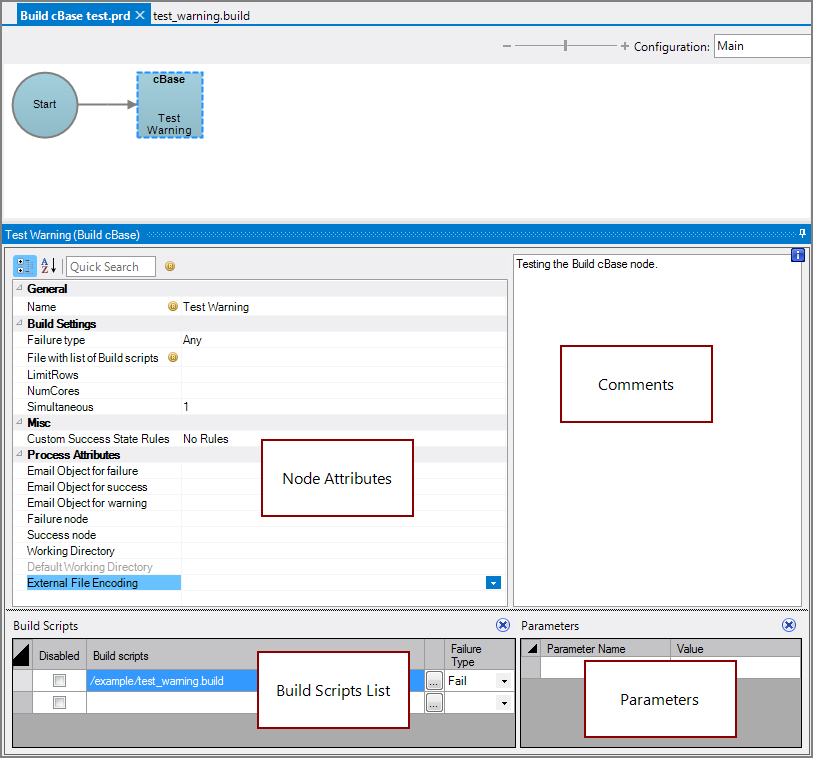

Production Build cBase with all panes

You set attributes for the Build cBase node in the Closednode attributes pane.

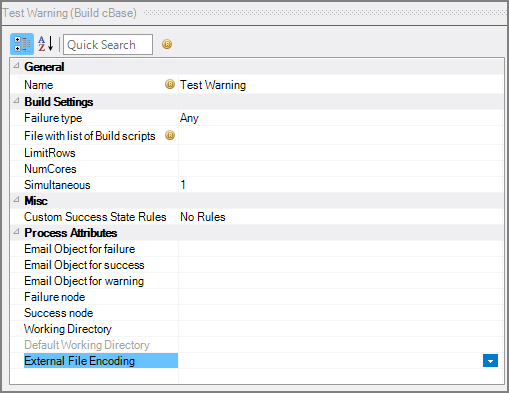

Production Build cBase Attributes

Attribute Description
Name

Specify a descriptive name for the node. Lower case names maximize usage of the available space.

Failure type Specify how to handle a Build cBase node failure:

  • If set to Any, which is the default and is recommended, the node fails if any of the Build scripts fail.
  • If set to Any and a Failure node is specified, the task flow goes to the Failure node if any of the Build scripts fail.
  • If set to All, the task flow stops only if all of the Build scripts fail; otherwise, the task flow continues to the next node.
File with list of Build scripts
(Required if no Build Scripts attribute is set)

Specify a text file that contains the names of each Spectre Build script file. List the name of each Spectre Build script file on a separate line. To select the file, use the browse button (...) that appears when you click in the empty File with list of build Scripts box.

This attribute and the Build Scripts attribute are mutually exclusive.
LimitRows

Direct the Build cBase node to use a specific number of rows from each input file. If multiple input files are used, the first <number> of rows are read from each file, ensuring a complete sampling of data values.
NumCores

Define the number of cores to use for parallel processing, usually between 2 and 6. Using this attribute might speed up the build, but it depends on the capacity of the I/O system. Use this option when dealing with multiple inputs, or adding columns and lookups.
Simultaneous

Define the maximum number of Spectre Build files to process at the same time:

  • 0 or Blank—When set to 0 or blank, the number of simultaneously run files depends on the number of available processors.

  • 1 (Default)—When set to 1, all files run sequentially, one at a time.

  • 2, 3, 4, or More—If more files than processors are specified, the files run in the order that they are listed.

Custom Success State Rules

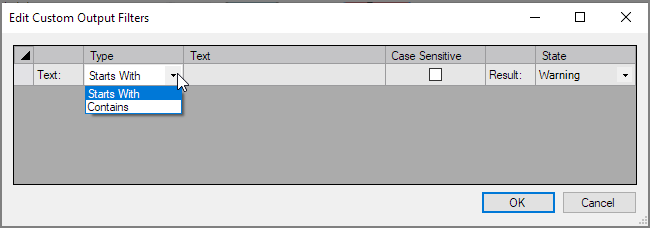

Opens the ClosedEdit Custom Output Filters dialog box where you can define a custom warning state (Failed, Succeeded, or Warning) based on text found in the node's output. Edit Custom Output Filters Dialog

See Custom Output Filters.

Email Object for failure

Select a predefined mailing list to send an email to if the node fails. The pull-down list is populated with items that can be found in Project Settings > Mailing Lists > Email Templates. See Mailing Lists Tab for information about setting up Mailing Lists and Email Objects.
Email Object for success

Select a predefined mailing list to send an email to if the node succeeds. The pull-down list is populated with items that can be found in Project Settings > Mailing Lists > Email Templates. See Mailing Lists Tab for information about setting up Mailing Lists and Email Objects.
Email Object for warning

Select a predefined mailing list to send an email to if the node generates a warning. The pull-down list is populated with items that can be found in Project Settings > Mailing Lists > Email Templates. See Mailing Lists Tab for information about setting up Mailing Lists and Email Objects.
Failure node

Select the next node upon failure. The pull-down list contains all nodes that are on the Task Flow.

Success node

Select the next node upon successful completion. The next node automatically populates if a connecting line is set on the Task Flow. The pull-down list contains all nodes that are on the Task Flow.

Working Directory

Specifies the directory in which this node runs. If left blank, the Default Working Directory attribute that is set in the Start Control Node is used. When running a script, Production sets the working directory for the child process to the directory that contains the script, unless the node specifies a different directory.

See Start Control Node.

Default Working Directory

Displays the Default Working Directory that is set the the Start Control Node. If a Default Working Directory is not specified, this attribute is blank. Applies to all nodes.

See Start Control Node.

External File Encoding

Select the format for the node input files. If this attribute is blank, Workbench attempts to detect the type of encoding.

This attribute is also used when saving log files. The encoding might need to be adjusted when using data with high bit Latin-1 characters or Unicode characters.

Each node has an area where you can enter comments.

It is a DI best practice to enter a note for every node in a Production script. These notes can help you or a coworker understand the intent of the node and troubleshoot issues in the future.

ClosedBuild cBase node with comments

Production Build cBase Node with Comments

Specify one or more Spectre Build files in the lower-left ClosedBuild Scripts pane.

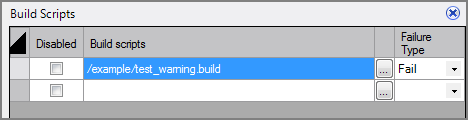

Production Build cBase Scripts List

The Build Scripts attribute is required if no File with list of Build scripts attribute is specified.
The Build Scripts attribute supports additional control attributes for more detailed control of settings per file than if using the File with list of Build scripts attribute:

  • Disabled—Disables specific Build scripts, which is useful for debugging. The default is no.
  • Failure Type—Specifies how to handle an individual Spectre Build file failure: Fail, Never, or Warning. The default is Fail.

The Build Scripts attribute and the File with list of Build scripts attribute are mutually exclusive.

Define parameters for this node in the lower-right ClosedParameters pane.

Production Build cBase Parameters

NOTE: Node-level parameters are available only for the current node.
See Parameters in Production for more information.

See Build Model Process Node for the classic model Build engine.
