Adding Page Links

A link can add a transition point to a reference such as another DiveTab page, DivePort page, web page, document, or map.

Links can also be added to charts and column sets. This procedure describes how to add a page link.

Here is an example of an overview page with a grid including some basic information.

Grid Dimcounts before Links are added.

Here is the code for the overview page.

divetab version = "0.0" {

  definitions {
    elements {
      grid id = "grid_labels" {
        row
        row "Posting Period"
        row
        row "Corporate Product Group"
        row "Corporate Product Sub Group"
        row "Corporate Brand"
        row
        row "Resp Team"
        row "Resp SalesPerson"
      }

      grid id = "grid_columns" {
        row
        row {
          text column = "Posting Period Count" {
            justification "left"
        }
        row
        row {
          text column = "Corporate Product Group Count" {
            justification "left"
          }
        }
        row {
          text column = "Corporate Product Sub Group Count" {
            justification "left"
          }
        }
        row {
          text column = "Corporate Brand Count" {
            justification "left"
          }
        }
        row
        row {
          text column = "Resp Team Count" {
            justification "left"
          }
        }
        row {
          text column = "Resp SalesPerson Count" {
            justification "left"
          }
        }
      }
    }
  }

  data-area id = "overview-page" {
    title "Adding Page Links"
    icon "/divetab/images/trends-322-178.png"
    sections {
      overview-page {
        title "Overview Page"
        cplan "/cplans/basic_101.cplan"

        tab "Cost" {
          screen {
            layout {
              vsplit {

                hsplit percent = 40 {
                  spacer percent = 3
                  element id = "grid_labels" percent = 20
                  line percent = 2
                  element id = "grid_columns" percent = 10
                  line percent = 2
                  spacer percent = 63
                }
              }
            }
          }
        }
      }
    }
  }
}

This procedure details steps to change a column to include a link to an additional internal data page.

Open the appropriate divetab script.
Locate where the column is specified. For example, Corporate Product Group Count.

Add a link tag and specify a page. For example:

  text column = "Corporate Product Group Count" {
    justification "left"
    link {
      page id = "ad-hoc"
    }
  }

After the end of the sections block, add a pages tag.
```
  pages {
```

Add an ad-hoc-page for the link created in Step 3.

  pages {
    ad-hoc-page id = "ad-hoc" {
      title "Ad Hoc Sales"
      cplan "/cplans/basic_101.cplan"

      dimension "Corporate Product Group"
      dimcount-dimension "Corporate Brand"
      available-dimension "Resp Team"
      available-dimension "Resp SalesPerson"
      quickview-dimension "Posting Period"

      text column = "Cost" {
        value-format "$#,###.00"
      }
      text column = "Net Sales" {
        value-format "$#,###.00"
      }
    }
  }

Save the script and Sync in DiveTab.

Here is the result of the code in DiveTab.

Grid Dimcounts with Links now added; row now shaded to indicate link

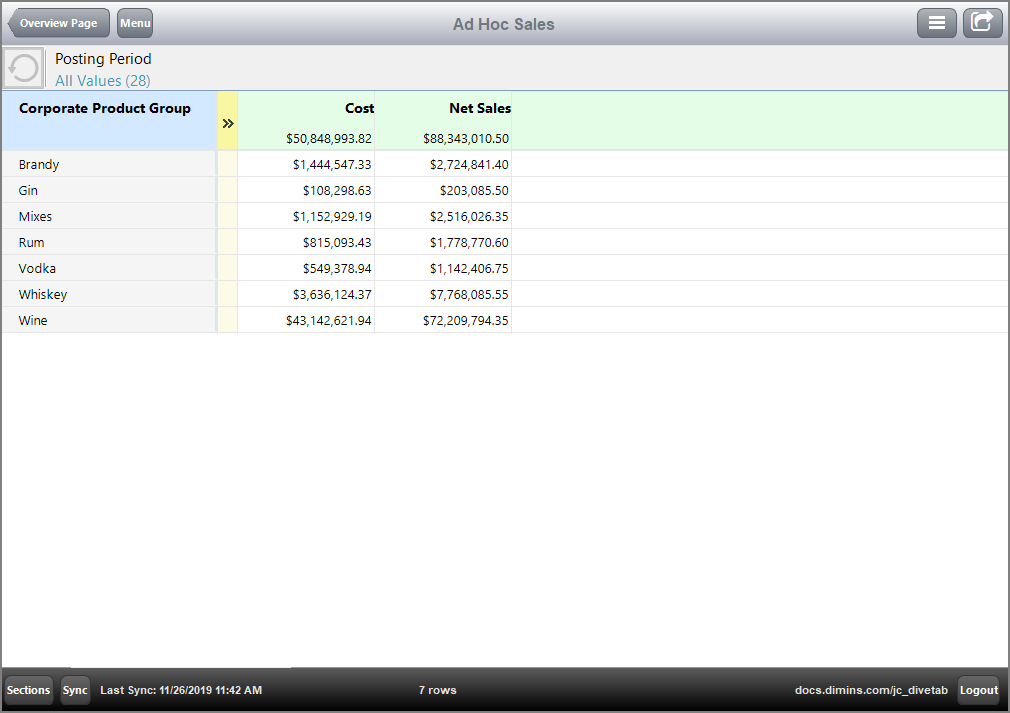

Here is the linked ad hoc page.

Linked Ad Hoc page.

Things to note about this script sample:

Pages defined in a pages block are only accessible through the click action generated by the defined link.
These links appear to the DiveTab user as shaded cells.
Such pages and links can simulate simple diving into the details, or provide access to related but different data sets.
If the target page has a corresponding parameter, the selected value on the initial page is passed to the target page.
