Adding a Diver Portlet

1. In DivePort, browse to the page where you want to add the portlet.

2. On the DivePort toolbar, click Edit to unlock the page and enable edit mode.

   The Edit menu item is replaced with edit tools, including a page context menu chevron.

3. On the toolbar, click the chevron.
4. On the page context menu, click Add a Portlet.

5. On the Add Portlet list, double-click Diver Portlet.

   The Edit Diver Portlet dialog box and the Select Marker dialog box open.

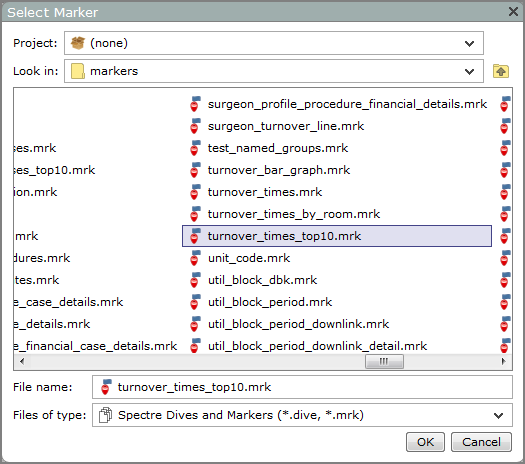

6. In the Select Marker dialog box, specify a Project, locate the Spectre Dive file or marker that you want to use for the portlet, select it, and then click OK.

   The Select Marker dialog box closes, and the Edit Diver Portlet dialog box is populated with the selected Marker and the Dimension that was selected for the final dive.



7. To identify diveable dimensions that you want in the portlet, click Change to the right of the dimension that is listed on the dialog box.

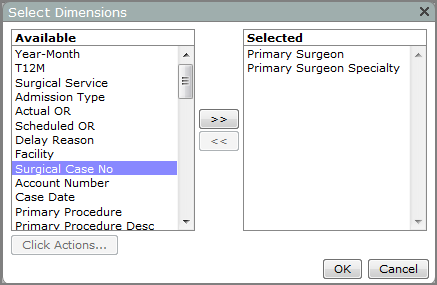

   The Select Dimensions dialog box opens.



8. Select the dimensions from the Available list that you want to include as an option for diving in the portlet, click >> to move them to the Selected list, and then click OK.

   NOTE: When you perform a dive on the diver portlet, dimensions that are included in this selected list are the dimensions available for diving.



9. To select columns that you want to display in the portlet, click Add Text on the lower section of the Edit Diver Portlet dialog box.

   The Add Text Columns dialog box opens.



10. Select the columns that you want to add to the portlet, and then click OK.

11. If you want to add an indicator column to the portlet, click Add Indicator on the lower section of the Edit Diver Portlet dialog box. Otherwise, proceed to step 15.

    The Add Indicator Column dialog box and the Select an Indicator Type dialog box open.





12. Select an indicator type from the Type list, and then click OK.

    TIP: Click an item on the list to see a graphic representation and description of the indicator.

13. The Add Indicator Column dialog box is updated with the indicator type and appropriate property options.

14. Edit the property options as you like.

    For more information about indicators, see Indicator Portlet Options - Standard License.

15. If you want to add click actions to the portal, on the lower section of the Edit Diver Portlet dialog box, click Click Actions.

16. When you have finished customizing the portlet, click OK.
17. On the toolbar, click Save to save the portlet instance and lock the page.

1. In DivePort, browse to the page where you want to add the portlet.

2. On the DivePort toolbar, click Edit to unlock the page and enable edit mode.

   The Edit menu item is replaced with edit tools, including a page context menu chevron.

3. On the toolbar, click the chevron.
4. On the page context menu, click Add a Portlet.

5. On the Add Portlet list, double-click Diver Portlet.

   The Edit Diver Portlet, Select a data source dialog box opens. This is the first page of a portlet creation wizard.



6. In the Project box, select a Measure Factory project from the list, and then click Next.

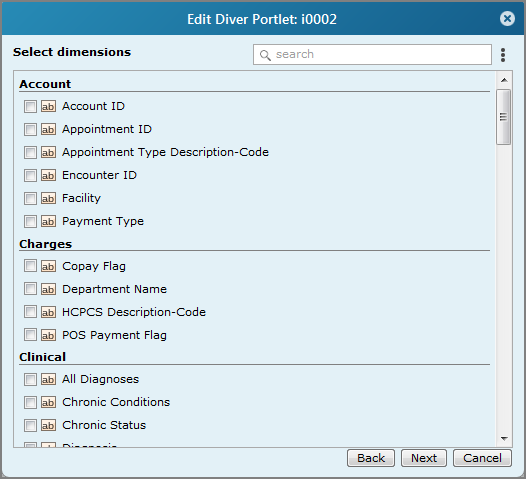

   The Select Dimensions dialog box opens.



7. Select the dimensions that you want to display as portlet columns, and then click Next.

   TIP: You can use the search box to narrow the list of options or click the menu icon to sort the list in a different order.

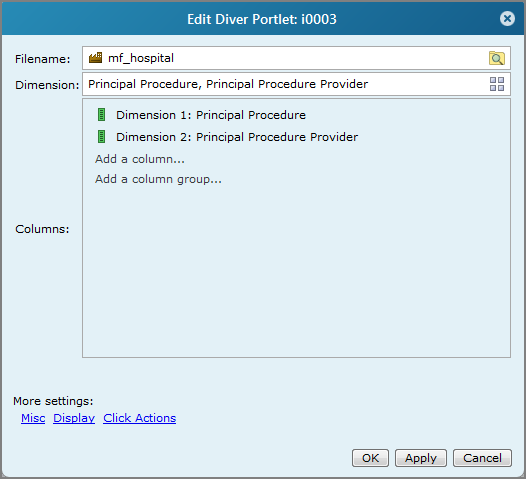

   The Edit Diver Portlet main page opens, showing the selected project filename and dimension columns.



8. To customize the dimension columns, click the Change icon located on the right next to the Dimension name.

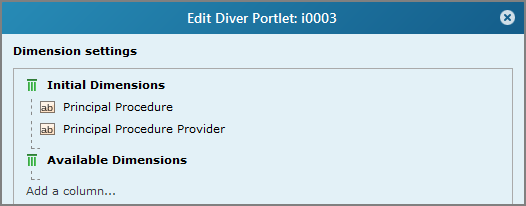

   The Dimension settings dialog box opens.

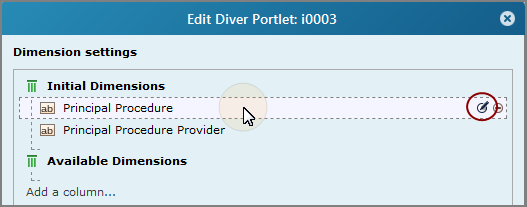

9. Place the cursor on the dimension column that you want to customize, and then click the Edit this column icon.

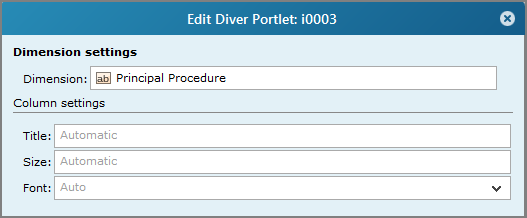

   Another page opens that you can use to customize the column Title, Size, and Font. Other options vary, depending on the type of dimension data.



10. Change the column settings as you like, and then click OK.

    DivePort returns to the Dimension settings page.

11. To identify diveable dimensions that you want to add to the portlet, click Add a column.

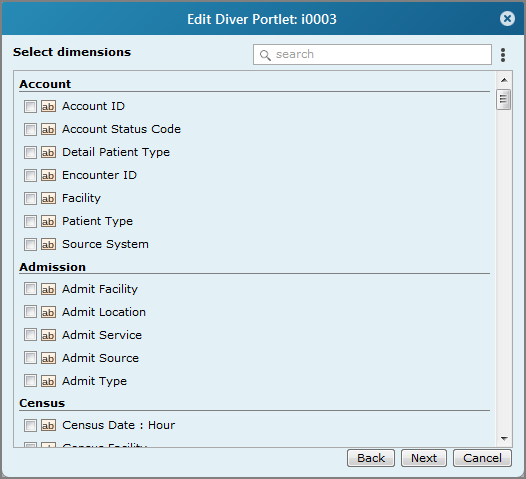

    The Select dimensions dialog box opens.



12. Select the dimensions that you want to add as diveable dimensions, and then click Next.

    DivePort adds the diveable dimensions to the Dimension settings page under Available Dimensions.

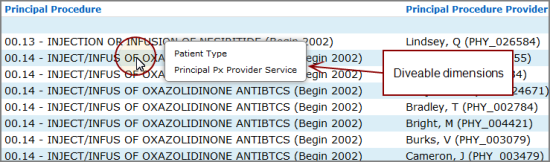

    When a user clicks a row on the Diver portlet, these dimensions appear on a context menu.



13. Add other dimensions as you like. When you are finished adding dimensions, you can use a drag-and-drop operation to arrange the column order or to move columns to the Initial Dimension group.

14. Click OK to close the Dimension settings dialog box.

    DivePort returns to the Edit Diver Portlet main page, listing the initial dimensions only.

15. If you want to add an indicator column to the diver portlet, on the main page, click Add a column.

    The Select a chart type dialog box opens.



16. Select an indicator type, and then click Next.

    TIP: If you want to add a numeric column, select Text as the indicator type.

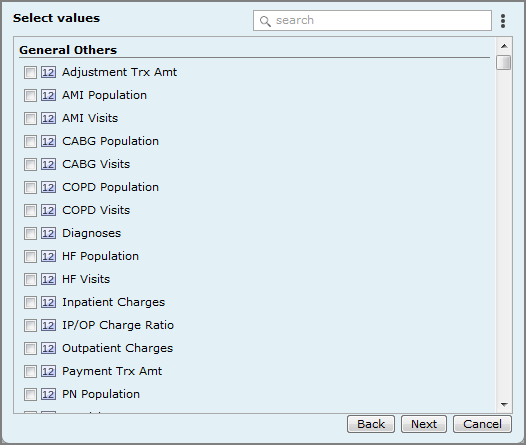

    The Select Values dialog box opens.



17. Select one or more column values from the list, and then click Next.

    TIP: If you want to add multiple columns of the type selected in step 16, you can select multiple values in this step. For example, if you want to add three text columns, select Text in step 16, and then select three values in this step.

18. Continue to define preferences in the Edit Diver Portlet wizard to customize indicator properties, and then click OK.

    The columns are added to the main page.

19. Click OK.
20. On the toolbar, click Save to save the portlet instance and lock the page.

For more information about indicators, see Indicator Portlet Options - Measure Factory License
