Zip Process Node

A Zip node is a Production process node that compresses files into an archive file. The supported file types are: zip, tar, tar.bz2, tar.gz, and 7z.

The Zip node has three panes where you set attributes.

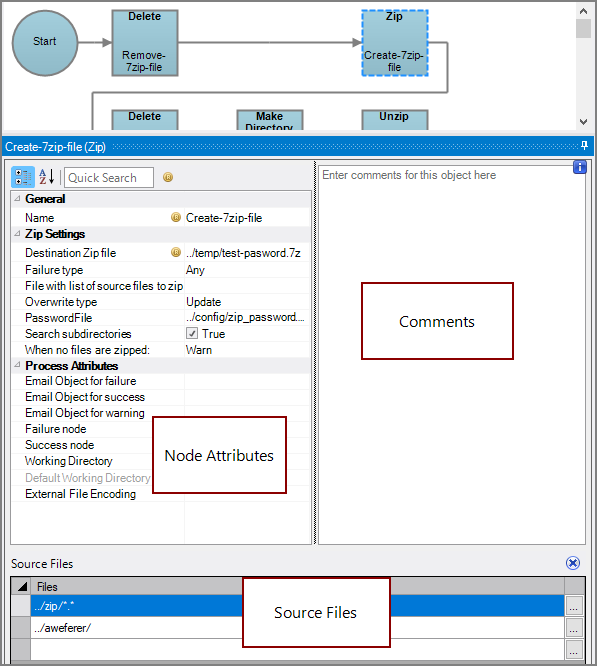

Production Zip Node All Panes

Node Attributes

You set attribute for the Zip node in the node attributes pane.

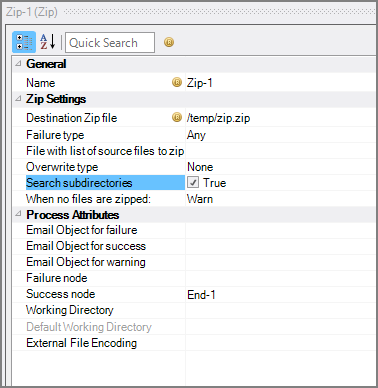

Production Zip Node Attributes

Attribute	Description
Name	Specify a descriptive name for the node. Lower case names maximize usage of the available space.
Destination Zip file (Required)	Set the directory where you want the archived compressed file to be placed. To select a directory, use the browse button (...) that appears when you click in the empty Destination Zip file box.
Failure type	Specify how to handle a Zip node failure: If set to Any, which is the default and is recommended, the node fails if any of the listed files fail to compress into the archive file. One or more files can be defined in the Source Files attribute. If set to Any and a Failure node is set, the task flow goes to the Failure node if any of the files fail to compress into the archive file. If set to All, the task flow stops only if all of the files fail to compress into the archive file; otherwise, the task flow continues to the next node.
File with list of source files to zip	Specify a text file that contains the names of each file that you want included in the archive file. List the name of each file to include on separate line. To select the file, use the browse button (...) that appears when you click in the empty File with list of source files to zip box. This attribute and the Source Files attribute are mutually exclusive.
Overwrite type	Specify how to handle when a file of the same name exists within the archive file: New, Update, None. The default is None.
Password file	Specify a text file containing a password to encrypt with the zip file. This is only available when using the 7Zip (`*.7z`) file format.
Search subdirectories	When using the `.` wildcard combination to specify a folder as the Source File attribute, this check box specifies if all of the sub-folders and their contents will be zipped. When the check box is not checked, only non-folder files contained within the folder are included in the zip file.
When no files are zipped	Specify how to handle if no files are added to the archive file: Warn, Fail, or Succeed. The default is Warn.
Email Object for failure	Select a predefined mailing list to send an email to if the node fails. The pull-down list is populated with items that can be found in Project Settings > Mailing Lists > Email Templates. See Mailing Lists Tab for information about setting up Mailing Lists and Email Objects.
Email Object for success	Select a predefined mailing list to send an email to if the node succeeds. The pull-down list is populated with items that can be found in Project Settings > Mailing Lists > Email Templates. See Mailing Lists Tab for information about setting up Mailing Lists and Email Objects.
Email Object for warning	Select a predefined mailing list to send an email to if the node generates a warning. The pull-down list is populated with items that can be found in Project Settings > Mailing Lists > Email Templates. See Mailing Lists Tab for information about setting up Mailing Lists and Email Objects.
Failure node	Select the next node upon failure. The pull-down list contains all nodes that are on the Task Flow.
Success node	Select the next node upon successful completion. The next node automatically populates if a connecting line is set on the Task Flow. The pull-down list contains all nodes that are on the Task Flow.
Working Directory	Specifies the directory in which this node runs. If left blank, the Default Working Directory attribute that is set in the Start Control Node is used. When running a script, Production sets the working directory for the child process to the directory that contains the script, unless the node specifies a different directory. See Start Control Node.
Default Working Directory	Displays the Default Working Directory that is set the the Start Control Node. If a Default Working Directory is not specified, this attribute is blank. Applies to all nodes. See Start Control Node.
External File Encoding	Select the format for the node input files. If this attribute is blank, Workbench attempts to detect the type of encoding. This attribute is also used when saving log files. The encoding might need to be adjusted when using data with high bit Latin-1 characters or Unicode characters.
