Dive Process Node

A Dive node is a Production process node that runs a Spectre Dive script, which describes a query to a cBase.

Production Dive Node

The results of the Dive are written to the Production logs which you can use to manually view the results of the dive. The dive node allows you to run one or multiple dives to populate the cache before users look at their data.

TIP: If you run a Spectre dive from an Execute node, you can capture the output.

The Dive node has three panes where you set attributes.

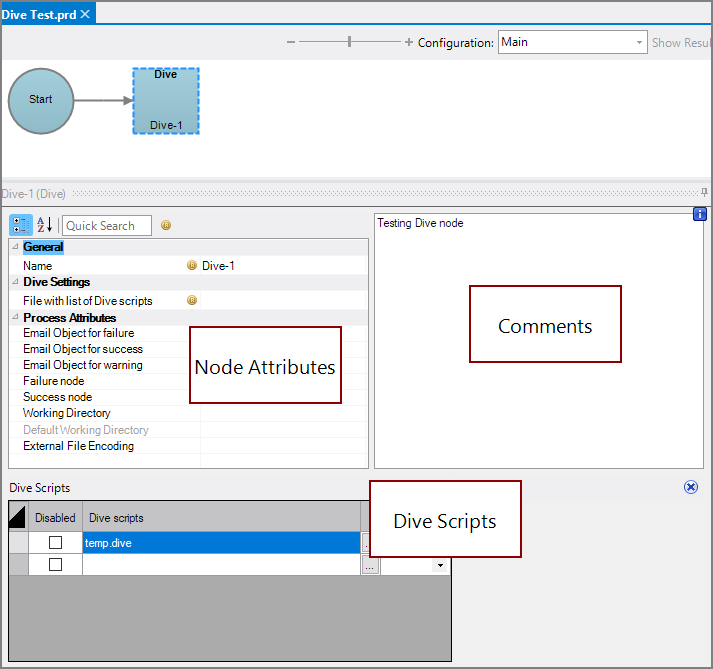

Production Dive Node All Panes

Node Attributes

You set attributes for the Dive node in the node attributes pane.

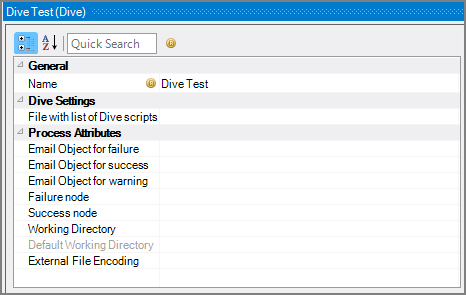

Production Dive Node Attributes

Attribute	Description
Name	Specify a descriptive name for the node. Lower case names maximize usage of the available space.
File with list of Dive scripts (Required if no Dive Scripts attribute is set)	Specify a text file that contains the names of each Dive file. List the name of each Dive file on a separate line. To select the file, use the browse button (...) that appears when you click in the empty File with list of Dive scripts box. This attribute and the Dive Scripts attribute are mutually exclusive.
Email Object for failure	Select a predefined mailing list to send an email to if the node fails. The pull-down list is populated with items that can be found in Project Settings > Mailing Lists > Email Templates. See Mailing Lists Tab for information about setting up Mailing Lists and Email Objects.
Email Object for success	Select a predefined mailing list to send an email to if the node succeeds. The pull-down list is populated with items that can be found in Project Settings > Mailing Lists > Email Templates. See Mailing Lists Tab for information about setting up Mailing Lists and Email Objects.
Email Object for warning	Select a predefined mailing list to send an email to if the node generates a warning. The pull-down list is populated with items that can be found in Project Settings > Mailing Lists > Email Templates. See Mailing Lists Tab for information about setting up Mailing Lists and Email Objects.
Failure node	Select the next node upon failure. The pull-down list contains all nodes that are on the Task Flow.
Success node	Select the next node upon successful completion. The next node automatically populates if a connecting line is set on the Task Flow. The pull-down list contains all nodes that are on the Task Flow.
Working Directory	Specifies the directory in which this node runs. If left blank, the Default Working Directory attribute that is set in the Start Control Node is used. When running a script, Production sets the working directory for the child process to the directory that contains the script, unless the node specifies a different directory. See Start Control Node.
Default Working Directory	Displays the Default Working Directory that is set the the Start Control Node. If a Default Working Directory is not specified, this attribute is blank. Applies to all nodes. See Start Control Node.
External File Encoding	Select the format for the node input files. If this attribute is blank, Workbench attempts to detect the type of encoding. This attribute is also used when saving log files. The encoding might need to be adjusted when using data with high bit Latin-1 characters or Unicode characters.
