Column and Expand Set Parameter Code Samples

Here is an example of a column-set that uses a parameter to control both the data and its heading.

  definitions {
    column-set id = "cs-pastyears" {
      take-parameter "summary"
      text "$(summary)" column = "$(summary)"
      text "$(summary) Y" column = "$(summary) Y"
      text "$(summary) Y-1" column = "$(summary) Y Y-1"
    }
  }
  data-area id = "data-area-1" {
    title "Parameters Sample"
    icon "/divetab-script/images/trends.png"

    sections {
      report-page {
        title "Column Set Parameters"
        cplan "/cplans/basic_timeseries.cplan"
        dimension "Resp Team"
        column-set id = "cs-pastyears" {
          pass-parameter "summary" "Cases"
        }
      }
    }
  }

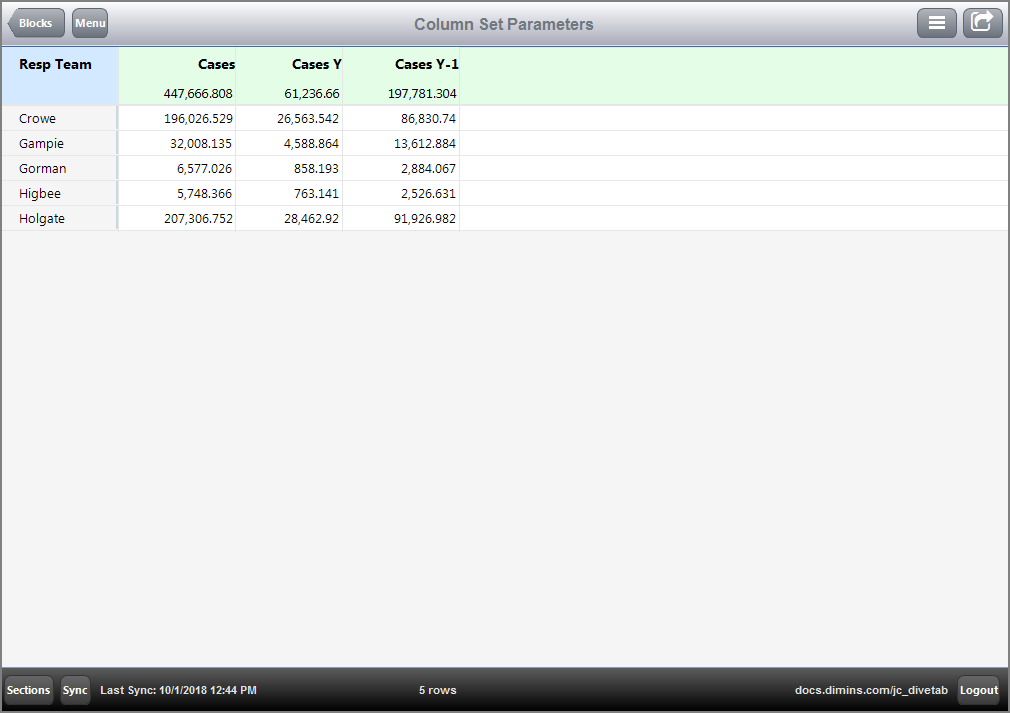

This is the the result of the code in DiveTab.

The take-parameter tag identifies summary as the placeholder value, so every "$(summary)" used in the column-set is marked as a variable.

The pass-parameter tag identifies which placeholder value it replaces and the replacing value. The first argument for pass-parameter identifies the take-parameter variable; the second argument is the value for that variable. For this example, pass-parameter replaces the take-parameter summary variable with the Cases summary.

The same column-set can be used multiple times with different pass-parameters. For example, a second column-set could use Cost for the pass-parameter.

Here is a more customized example with column-sets and expand-sets, and two parameter values in use.

  definitions {
    column-set id = "cs-pastyears-param" {
      take-parameter "summary"
      text "$(summary)" column = "$(summary)" {
        expand "Past Years" {
          text "$(summary) Y-1" column = "$(summary) Y Y-1"
          text "$(summary) Y-2" column = "$(summary) Y Y-2"
        }
        expand "Quarters" {
          text "Q1" column = "$(summary) Q1 Y-1"
          text "Q2" column = "$(summary) Q2 Y-1"
          text "Q3" column = "$(summary) Q3 Y-1"
          text "Q4" column = "$(summary) Q4 Y-1"
        }
      }
    }
  }

  data-area id = "data-area-1" {
    title "Parameters Sample"
    icon "/divetab/images/trends.png"

    sections {
      report-page {
        title "RP - Parameters"
        cplan "/cplans/basic_timeseries.cplan"

        dimension "Resp Team"

        column-set id = "cs-pastyears-param" {
          pass-parameter "summary" "Cases"
        }
        column-set id = "cs-pastyears-param" {
          pass-parameter "summary" "Cost"
        }
      }
    }
  }

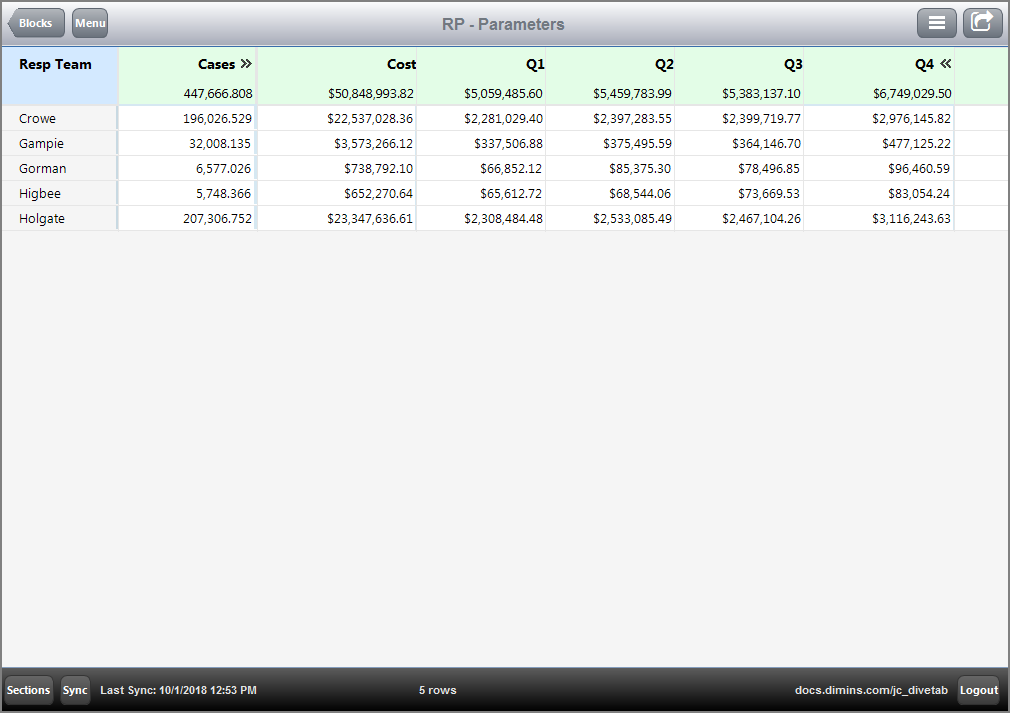

This is the result of the code in DiveTab, showing the Quarters expand for Cost.

The expand for Past Years is not shown.
