Multi-Select CrossLink Click Action Options

An example of an Edit Click Action, Multi-Select CrossLink dialog box.

Option Description
Type Specifies the click action type.
Scope Specifies the click action scope. Row is the only option.
Label Specifies the label that displays in the on the click action trigger button. This option accepts macros. The default is CrossLink.
Add a checkbox column for selection

Applies to measures portlets only. Adds a check box to each row of the Closedportlet. Selecting this option makes it easier for users to specify which rows are applied to the click action.

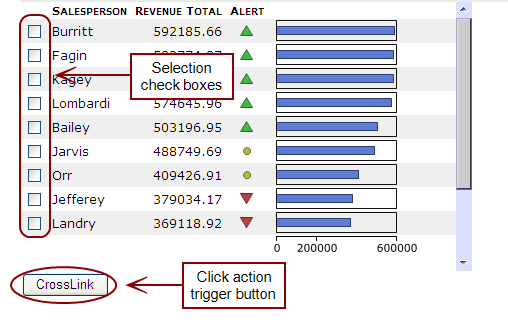

Example showing selection check boxes.

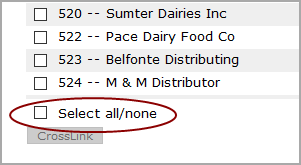

Add a checkbox for selecting all

Applies to measures portlets when the Add a checkbox column for selection is selected. Adds a Select all/none check box above the CrossLink button. Clicking the check box selects or clears all selection check boxes.

Link Fields Available when link fields are enabled in the portaldb.json file. Opens the Link Fields dialog box, which you can use to select columns from the source. Values from these columns are added to the down link parameters and are shared with the linked portlet instance.
Conditional

Specifies that the click action is available only if the value in the column specified in the adjoining box is a non-zero number or non-empty string. For example, if the option is set as follows: Setting the conditional option

  • On rows where the Current vs Last +/- column is not 0 or blank, the click action appears as a row-scoped click action.

  • On rows where the Current vs Last +/- column value is 0, blank, or an empty string; the click action does not appear as a row-scoped click action.

This option is cleared by default. For more information, see About Conditionalized Click Actions.
