Resizing a Portlet

In most cases, you can change the portlet size to improve the page aesthetics or to enhance the impact of the data that is displayed.

You can change the portlet size using the portlet context Settings menu, or use a click-and-drag operation to adjust the portlet boundaries.

Not all portlets can be resized. Note the following exceptions:

QuickView portlets are always as big as necessary to accommodate the QuickViews.
Menu portlets typically fill the entire page.
Web Page portlets use the Frame Size setting from the Edit Web Page Portlet dialog box, regardless of the portlet size setting.
Image portlets can be configured to ignore the portlet size setting by clearing the Scale Image to Portlet Frame option on the Edit Image Portlet dialog box. When that is done, the image is drawn at its original size and resizing the portlet has no effect.

IMPORTANT: Portlet sizing issues can result in obscuring underlying content and can have the effect of disabling row or portlet scope click actions.

Using the context menu

Browse to the DivePort page where the portlet is located.
On the DivePort toolbar, click Edit to unlock the page and enable edit mode.
Click the portlet that you want to resize.

The portlet is shaded blue to indicate that it is selected.
Click the portlet context menu chevron.

The portlet context menu opens.

NOTE: If the portlet is grouped with others, Settings is not an option. In that case, use a click and drag operation to resize the portlet. See Using a click-and-drag operation.
Click Settings.

The Portlet Instance Settings dialog box opens.
In the Size box, enter the portlet size in pixels, in the format width height.
Click OK to close the dialog box.

The portlet changes to the specified size.
On the title bar, click Save to save the changes and exit edit mode.

Using a click-and-drag operation

Browse to the DivePort page where the portlet is located.
On the DivePort toolbar, click Edit to unlock the page and enable edit mode.
Click the portlet that you want to resize.

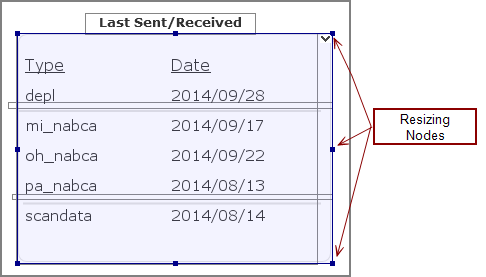

The portlet is shaded blue to indicate that it is selected and the border shows eight resizing nodes.
Place the pointer on the blue square that you want to use for the click-and-drag operation.

The cursor changes to a two-headed arrow.
Click and hold the blue square, and drag the border to the size that you want.
Repeat using other squares if needed.
On the title bar, click Save to save the changes and exit edit mode.
