Adding a Marker Portlet

A marker portlet displays data from a marker or DiveBook file.

  1. In DivePort, browse to the page where you want to add the portlet.

  2. On the DivePort toolbar, click Edit to unlock the page and enable edit mode.

    The Edit menu item is replaced with edit tools, including a page context menu chevron.

  3. On the toolbar, click the chevron.
  4. On the page context menu, click Add a Portlet.

  1. In the Add Portlet page, double-click Marker Portlet.

    The Edit Marker Portlet and Select a Marker Closeddialog boxes open.

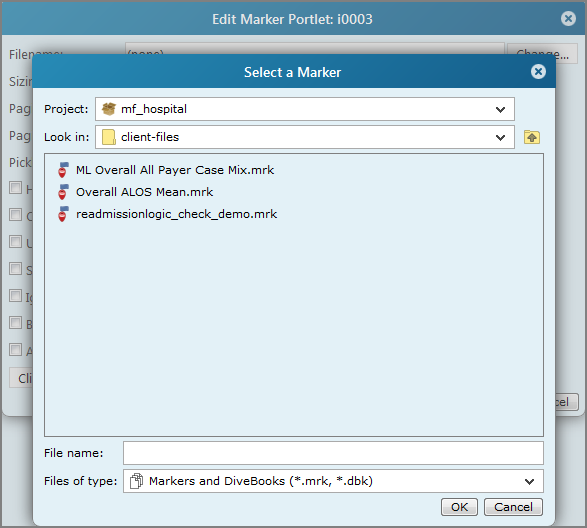

    Select a marker dialog box.

  2. On the Select a Marker dialog box, browse to and select a marker file.

    DivePort returns to the the Edit Marker Portlet Closeddialog box.

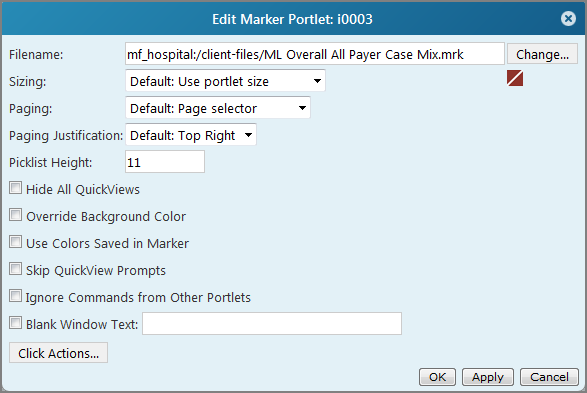

    An example of an edit marker portlet dialog box showing a selected marker and other default values.

  3. Set the options as you like and then click Apply to preview the portlet, or OK to save the changes.

For more information, see Marker Portlet Options.

  1. In DivePort, browse to the page where you want to add the portlet.

  2. On the DivePort toolbar, click Edit to unlock the page and enable edit mode.

    The Edit menu item is replaced with edit tools, including a page context menu chevron.

  3. On the toolbar, click the chevron.
  4. On the page context menu, click Add a Portlet.

  1. In the Add Portlet dialog box, double-click Marker Portlet.

    The Edit Marker Portlet and Select a Marker Closeddialog boxes open.

    Edit marker portlet and select a marker dialog boxes.

  2. On the Select a Marker dialog box, browse to and select a DiveBook file.

    The DiveBook Select Closeddialog box opens.

    An example of a dive book select file.

  3. Select an Area and Topic, and then click OK.

    DivePort returns to the the Edit Marker Portlet Closeddialog box.

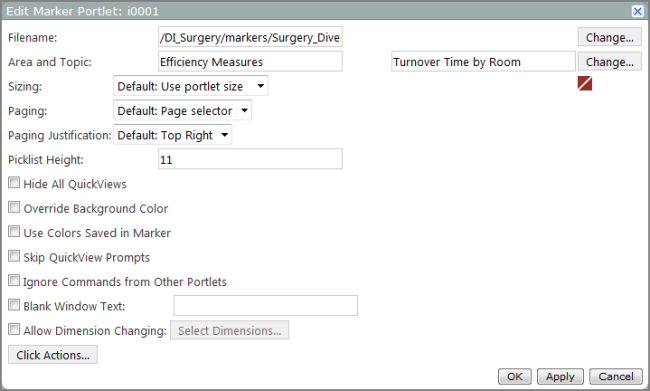

    An example of an edit marker portlet dialog box showing a selected dive book, area, and topic and other default values.

  4. Set the options as you like and then click Apply to preview the portlet, or OK to save the changes.

For more information, see Marker Portlet Options.
