Chart Portlet Options

Available chart portlet options depend on:

  • Type of chart
  • Type of data
  • License
  • Software version

The following table describes options that apply to all types of chart portlets.

Option Description
Project Specifies the project that provides the data for the portlet.
Look in Applies to Standard License. Specifies the folder location of the cPlan, cBase, marker or Spectre Dive file that you want to use as a data source.
File name Applies to Standard License. Specifies the cPlan, cBase, marker, or Spectre Dive file that you want to use as a data source.
Files of type Applies to Standard License. Specifies the type of file that you want to use as a data source. This option helps you find the appropriate file in a large database by filtering out other types of files.
Source

Specifies the data source.

Either the file name (standard license) or the project name (Measure Factory license).
Icon looks like a folder with a magnifying glass. Opens the Select a data source dialog box, which you can use to select a different data source file.
Icon looks like a square with an arrow pointing out of the upper right corner.

Provides options to open the source file in another application, typically ProDiver, NetDiver, or Workbench.
Chart type Specifies the type of chart. You can use the search box to narrow the list of choices, or click the menu icon The menu icon. to sort the list or switch to list view. For more information, including descriptions and examples of chart types, see Types of Charts.
Icon that looks like four squares arranged two by two. Opens the Select a chart type page, which you can use to change the chart type.
Dimension

Specifies the dimension that is used to enumerate values on the chart.

NOTES:

  • On a heatmatrix chart, this is the vertical axis.
  • Connection charts do not support date or period dimensions.
Values

Specifies measure or summary data values that display on the chart.

NOTE: Some charts support more than one value.

The following sections define options available to the specified chart types.

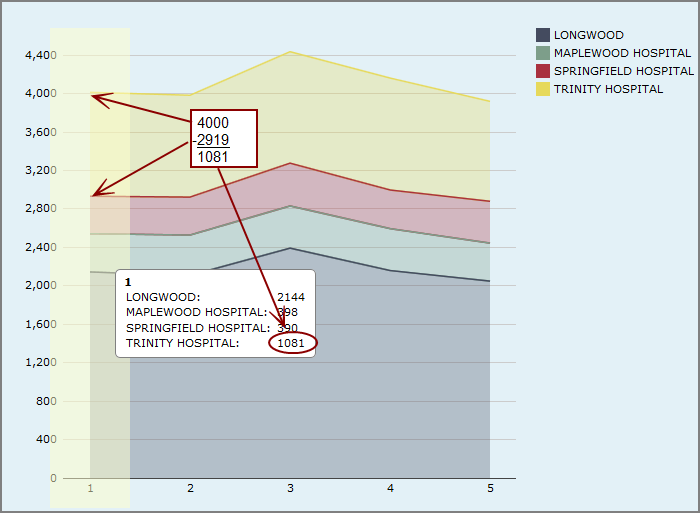

Area, Spline Area, and Stacked Area Charts

In addition to the options that apply to all chart types, the following options apply to area, spline area, and stacked area charts.

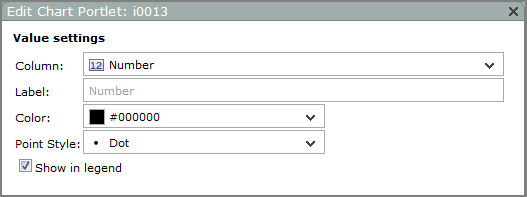

Additional values, with customizable Value settings. To add a value, click Add a value on the main page.

Option Description
Column Specifies a measure or summary value to use as a column.
Measure Value Applies to Measure Factory. Specifies whether to use the measure value or a threshold that is defined in the measure factory.
Time series icon that looks like a gear. Opens the time series mode settings box. Options are Basic and Advanced.
Basic time series settings

Applies to Measure Factory. Basic features are as follows:

DateRange



Specifies the date range. Options are:

  • Year to Date (The first day of the year returns 0)
  • Year to Complete Month (The first month of the year returns data for all of last year)
  • Month to Date (The first day of the month returns 0)
  • Week to Date (The first day of the week returns 0)
  • Complete Year
  • Complete Month
  • Complete Week
  • Complete Day
  • Rolling Year by Month (the last 12 complete months)
  • Year
  • Future Months

Time period



Specifies the time period. Options are:

  • All
  • Current
  • Previous
  • Current Versus Previous
  • Current Versus Previous (%)
  • Previous Year
  • Current Versus Previous Year
  • Current Versus Previous Year (%)

Advanced time series settings

Applies to Measure Factory. Advanced features allow the following customization of the time period:

To Date



Uses the specified time range and offset values to define the time series. The default Time Range is the current Year to complete Day. Other options are Year to complete Month, Year to complete Quarter, Week to complete Day, Month to complete Day, and Quarter to complete Day.

The offset value can adjust the time series by the specified time period. For example, setting the Time Range to Year to complete Day, with an offset of -1 Year, is the equivalent of last year to complete day. Available options for the offset time period are those time periods that are larger than or equal to the first time range.

Relative



Uses the specified complete time range and offset values to define the time series. The default Time Range is 1 Year, which is the current complete year. Other time period options are Day, Week, Month, and Quarter.

The offset value can adjust the time series by the specified time period. For example, setting the Time Range to 1 Year, with an offset of -1 Year, is the equivalent of the year before the current complete year. Available options for the offset time period are those time periods that are larger than or equal to the specified time range.

Absolute



Uses the specified time range and offset values to define the time series. The default Time Range is Month 1 of the current year. The other time period option is Quarter. This option supports custom calendars.

The offset value can adjust the time series by the specified number of years.
Label Specifies a label for the value column. The column name is the default label. This option accepts portlet-level macros.
Color Specifies the color of the data value.
Axis Specifies the location of the Axis scale. Depending on the chart type, the default is Left or Bottom. Other options are Right or Top.

MultiTab Area, MultiTab Spline Area, and MultiTab Stacked Area Charts

In addition to the options that apply to all chart types, the following options apply to MultiTab area charts.

Option Description
Category

Specifies a secondary dimension that is used in MultiTab charts to divide the first dimension's data into categories.
Time series icon that looks like a gear. Applies to Measure Factory. Opens the time series mode settings box. Options are Basic and Advanced.
Basic time series settings

Applies to Measure Factory. Basic features are as follows:

DateRange



Specifies the date range. Options are:

  • Year to Date (The first day of the year returns 0)
  • Year to Complete Month (The first month of the year returns data for all of last year)
  • Month to Date (The first day of the month returns 0)
  • Week to Date (The first day of the week returns 0)
  • Complete Year
  • Complete Month
  • Complete Week
  • Complete Day
  • Rolling Year by Month (the last 12 complete months)
  • Year
  • Future Months

Time period



Specifies the time period. Options are:

  • All
  • Current
  • Previous
  • Current Versus Previous
  • Current Versus Previous (%)
  • Previous Year
  • Current Versus Previous Year
  • Current Versus Previous Year (%)

Advanced time series settings

Applies to Measure Factory. Advanced features allow the following customization of the time period:

To Date



Uses the specified time range and offset values to define the time series. The default Time Range is the current Year to complete Day. Other options are Year to complete Month, Year to complete Quarter, Week to complete Day, Month to complete Day, and Quarter to complete Day.

The Offset value can adjust the time series by the specified time period. For example, setting the Time Range to Year to complete Day, with an offset of -1 Year, is the equivalent of last year to complete day. Available options for the offset time period are those time periods that are larger than or equal to the first time range.

Relative



Uses the specified complete time range and offset values to define the time series. The default Time Range is 1 Year, which is the current complete year. Other time period options are Day, Week, Month, and Quarter.

The Offset value can adjust the time series by the specified time period. For example, setting the Time Range to 1 Year, with an offset of -1 Year, is the equivalent of the year before the current complete year. Available options for the offset time period are those time periods that are larger than or equal to the specified time range.

Absolute



Uses the specified time range and offset values to define the time series. The default Time Range is Month 1 of the current year. The other time period option is Quarter. This option supports custom calendars.

The Offset value can adjust the time series by the specified number of years.

More settings for area charts

Options can vary, depending on the chart type and data type.

Option Description
Label Column

Specifies the label on the axis that displays the dimension values. The default is the values of the dimension selected to populate the chart. If the columns are too narrow for the dimension value labels to fit, DivePort shows a Closedsubset of the labels only.

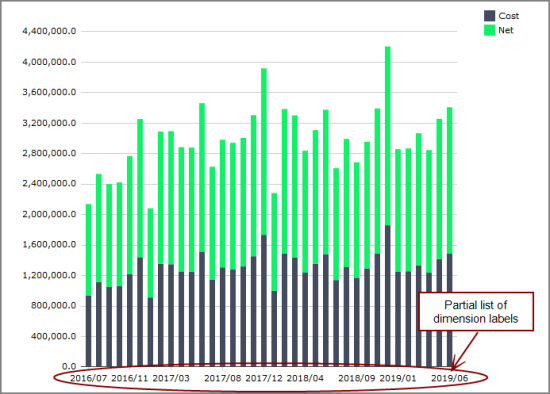

An example of a chart portlet showing a portion of the column labels displayed.

Slant labels Specifies that horizontal axis labels are slanted.
Label Format

Applies to date-type and period-type dimensions. Specifies the date label format. For more information, see Spectre Format Conventions.

NOTE: For date dimensions, the label format affects the chart hover text only, not the axis label.
Scale Type

Specifies the type of scale. The default is Linear (0, 10, 20, 30...). The other option is Logarithmic (0, 10, 100, 1000...).

NOTE: If there are two vertical axes, this setting applies to both axes.

Left Axis/Right Axis Settings or Bottom Axis/Top Axis Settings

NOTE: Double axes settings apply to Area, Spline Area, Bar, Column, Line, Histogram, Sparkline, and Spline charts.

  • If both left and right axes render, the primary (left) axis scale does not necessarily match the secondary (right) axis scale.
  • If the chart portlet does not provide enough space for both axis scales to render, neither scale renders.

The Closedchart legend indicates left (L) and right (R) or bottom (B) and top (T) to indicate the scale for the dimension values.

An example of a column chart with double vertical axis.

Scale Minimum

Specifies the lowest value on the scale. The default, Automatic, calculates the minimum based on the values displayed in the chart.

NOTE: Macros are not supported options.
Scale Maximum

Specifies the highest value on the scale. The default, Automatic, calculates the maximum based on the values displayed in the chart.

NOTE: Macros are not supported options.
Scale Format

Sets the format of the scale values.

The default, Auto, is based on the format of the first value calculation.

NOTE: You can specify a format with up to 20 digits following a decimal point. If you specify more than 20 fractional digits, the extra digits are ignored and the next time you open the Edit Chart Portlet dialog box, the scale format is truncated accordingly.

For more information about number formats in DivePort, see Formatting Numeric Values.
Option Description
Show Legend

Adds a legend to the chart. This property is selected by default. Clear the check box if you do not want to include a legend.

NOTE: This option is disabled on scatter plot charts unless a Color Column is selected on the Color Settings dialog box.

Location

Specifies where the legend appears on the portlet. The default is Right, which displays the legend in the top right corner of the portlet. Other options are Left (top left corner), Top (centered above the chart), and Bottom (centered below the chart).
Width/Height

Specifies the width or height of the legend, in pixels. The default is Automatic, which sets the width/height to fit all names displayed in the legend.

NOTE: The full text of the legend does not display if this setting is too low. If this occurs, the legend appears truncated and appended with an ellipsis.
Label Column Applies to arc, chord, pie, and trellis charts. Specifies a dimension whose values you want to use as legend labels. This is useful when multiple dimension values have the same label or when the label has a calculated value appended to it.
Colors Applies to MultiTab charts. Specifies 16 color settings used to display data.

Matrix portlet print settings dialog box.

Specifies preferences for printed headers and footers on files that are exported as a result of Excel or PDF click actions.

Option Description
Title Text Specifies a title for the chart.
Title Font Specifies the title font style and size. Default is Verdana, 16px, bold.
Color Specifies the title text color, opacity, hue, saturation, and lightness. Default is black.

Availability varies, depending on the chart type.

Option Description
Title Text Specifies a title for the chart.
Font Specifies the title font style, size, color, opacity, hue, saturation, and lightness. Default is Verdana, 16px, bold, black.
# Items Specifies the number of items that display on the chart. For example, setting this option to 4 for a bar chart produces a chart with the top four bars based on the sort value. All items display by default. This option is not available for MultiTab charts.
Show Others If # Items is selected, this option displays the sum of the remaining items. For example, setting # Items to 4 for a bar chart, and then selecting this option produces a chart with the top four bars plus a fifth bar showing the sum of the remaining items.
Hide Null Values

Measure Factory license: This option hides any rows where all of the plotted values are either null, unknown, or 0.

Standard license: This option hides any rows where all of the plotted values are either null or unknown.
Sort By Specifies a dimension or value on which to sort. The default is No sort. This option is not available for MultiTab charts.
Sort Up Select if you want the dimension or value to sort up.
Sort Down Select if you want the dimension or value to sort down.
Option Description
Synchronize dimensions with other portlets

This option works in conjunction with the measures portlet feature, Allow Dimension Changing. When the user changes the dimension on the measures portlet, the change applies to the chart portlet as well. The following conditions must be met:

  • Both portlets must display the same dimension before the change.

  • The new dimension must be available in the data source of both portlets.
Interpolation Applies to spline charts. Specifies the type of interpolation line used on the chart. The default value is Cardinal. The other option is Monotone.

Bar, Column, Histogram, Sparkcolumn, Stacked Bar, and Stacked Column Charts

In addition to the options that apply to all chart types, the following options apply to bar charts.

Multiple values, which can be customized with Value settings, available by clicking Add a value on the main page:

Option Description
Column Specifies a measure or summary value to use as a column.
Measure Value Applies to Measure Factory. Specifies whether to use the measure value or a threshold that is defined in the measure factory.
Time series icon that looks like a gear. Applies to Measure Factory. Opens the time series mode settings box. Options are Basic and Advanced.
Basic time series settings

Applies to Measure Factory. Basic features are as follows:

DateRange



Specifies the date range. Options are:

  • Year to Date (The first day of the year returns 0)
  • Year to Complete Month (The first month of the year returns data for all of last year)
  • Month to Date (The first day of the month returns 0)
  • Week to Date (The first day of the week returns 0)
  • Complete Year
  • Complete Month
  • Complete Week
  • Complete Day
  • Rolling Year by Month (the last 12 complete months)
  • Year
  • Future Months

Time period



Specifies the time period. Options are:

  • All
  • Current
  • Previous
  • Current Versus Previous
  • Current Versus Previous (%)
  • Previous Year
  • Current Versus Previous Year
  • Current Versus Previous Year (%)

Advanced time series settings

Applies to Measure Factory. Advanced features allow the following customization of the time period:

To Date



Uses the specified time range and offset values to define the time series. The default Time Range is the current Year to complete Day. Other options are Year to complete Month, Year to complete Quarter, Week to complete Day, Month to complete Day, and Quarter to complete Day.

The Offset value can adjust the time series by the specified time period. For example, setting the Time Range to Year to complete Day, with an offset of -1 Year, is the equivalent of last year to complete day. Available options for the offset time period are those time periods that are larger than or equal to the first time range.

Relative



Uses the specified complete time range and offset values to define the time series. The default Time Range is 1 Year, which is the current complete year. Other time period options are Day, Week, Month, and Quarter.

The Offset value can adjust the time series by the specified time period. For example, setting the Time Range to 1 Year, with an offset of -1 Year, is the equivalent of the year before the current complete year. Available options for the offset time period are those time periods that are larger than or equal to the specified time range.

Absolute



Uses the specified time range and offset values to define the time series. The default Time Range is Month 1 of the current year. The other time period option is Quarter. This option supports custom calendars.

The Offset value can adjust the time series by the specified number of years.
Label Specifies a label for the value column. The column name is the default label. This option accepts portlet-level macros.
Color Specifies the color of the data value.
Axis Specifies the location of the Axis scale. Depending on the chart type, the default is Left or Bottom. Other options are Right or Top.
Show Mean Indicates that the mean value is drawn on the chart. You can specify a color and style for the line as well as whether or not a label is included. NOTE: If selected, the Label displays as MEAN: <number>.
Show Median Indicates that the median value is drawn on the chart. You can specify a color and style for the line as well as whether or not a label is included. NOTE: If selected, the Label displays as MEDIAN: <number>.

MultiTab Bar, MultiTab Column, MultiTab Stacked Bar, and MultiTab Stacked Column Charts

In addition to the options that apply to all chart types, the following options apply to MultiTab bar and MultiTab column charts.

Option Description
Category

Specifies a secondary dimension that is used in MultiTab charts to divide the first dimension's data into categories.
Value Specifies a measure or summary value to display on the chart.
Time series icon that looks like a gear. Applies to Measure Factory. Opens the time series mode settings box. Options are Basic and Advanced.
Basic time series settings

Applies to Measure Factory. Basic features are as follows:

DateRange



Specifies the date range. Options are:

  • Year to Date (The first day of the year returns 0)
  • Year to Complete Month (The first month of the year returns data for all of last year)
  • Month to Date (The first day of the month returns 0)
  • Week to Date (The first day of the week returns 0)
  • Complete Year
  • Complete Month
  • Complete Week
  • Complete Day
  • Rolling Year by Month (the last 12 complete months)
  • Year
  • Future Months

Time period



Specifies the time period. Options are:

  • All
  • Current
  • Previous
  • Current Versus Previous
  • Current Versus Previous (%)
  • Previous Year
  • Current Versus Previous Year
  • Current Versus Previous Year (%)

Advanced time series settings

Applies to Measure Factory. Advanced features allow the following customization of the time period:

To Date



Uses the specified time range and offset values to define the time series. The default Time Range is the current Year to complete Day. Other options are Year to complete Month, Year to complete Quarter, Week to complete Day, Month to complete Day, and Quarter to complete Day.

The Offset value can adjust the time series by the specified time period. For example, setting the Time Range to Year to complete Day, with an offset of -1 Year, is the equivalent of last year to complete day. Available options for the offset time period are those time periods that are larger than or equal to the first time range.

Relative



Uses the specified complete time range and offset values to define the time series. The default Time Range is 1 Year, which is the current complete year. Other time period options are Day, Week, Month, and Quarter.

The Offset value can adjust the time series by the specified time period. For example, setting the Time Range to 1 Year, with an offset of -1 Year, is the equivalent of the year before the current complete year. Available options for the offset time period are those time periods that are larger than or equal to the specified time range.

Absolute



Uses the specified time range and offset values to define the time series. The default Time Range is Month 1 of the current year. The other time period option is Quarter. This option supports custom calendars.

The Offset value can adjust the time series by the specified number of years.

More settings for bar charts

Option Description
Label Column

Specifies the label on the axis that displays the dimension values. The default is the values of the dimension selected to populate the chart. If the columns are too narrow for the dimension value labels to fit, DivePort shows a subset of the labels only.

Slant labels Specifies that horizontal axis labels are slanted.
Label Format

Applies to date-type and period-type dimensions. Specifies the date label format. For more information, see Spectre Format Conventions.

NOTE: For date dimensions, the label format affects the chart hover text only, not the axis label.
Label Width

Applies to bar charts. Specifies the width of the vertical axis label, in pixels.

Labels that are longer than this width are truncated and appended with an ellipses.

Labels that are shorter than this width are right-justified.

Setting this option to 0 hides the labels.

Label Format Applies to date dimensions. For more information, see Spectre Format Conventions.
Scale Type

Applies to histogram and sparkcolumn charts. Specifies the type of scale. The default is Linear (0, 10, 20, 30...). The other option is Logarithmic (0, 10, 100, 1000...).

NOTE: If there are two vertical axes, this setting applies to both axes.

Always include zero

Available when the Scale Minimum is set to Automatic. Ensures that the scale includes 0.

NOTE: Under certain conditions, such as when the scale minimum or maximum value is set to 0, this option is set automatically and cannot be changed.

Left Axis/Right Axis Settings or Bottom Axis/Top Axis Settings

NOTE: Double axes settings apply to Area, Spline Area, Bar, Column, Line, Histogram, Sparkline, and Spline charts.

  • If both left and right axes render, the primary (left) axis scale does not necessarily match the secondary (right) axis scale.
  • If the chart portlet does not provide enough space for both axis scales to render, neither scale renders.

The Closedchart legend indicates left (L) and right (R) or bottom (B) and top (T) to indicate the scale for the dimension values.

An example of a column chart with double vertical axis.

Scale Minimum

Specifies the lowest value on the scale. The default, Automatic, calculates the minimum based on the values displayed in the chart.

NOTE: Macros are not supported options.
Scale Maximum

Specifies the highest value on the scale. The default, Automatic, calculates the maximum based on the values displayed in the chart.

NOTE: Macros are not supported options.
Scale Format

Sets the format of the scale values.

The default, Auto, is based on the format of the first value calculation.

NOTE: You can specify a format with up to 20 digits following a decimal point. If you specify more than 20 fractional digits, the extra digits are ignored and the next time you open the Edit Chart Portlet dialog box, the scale format is truncated accordingly.

For more information on number formats in DivePort, see Formatting Numeric Values.

Edit chart portlet, date rollup settings dialog box.

Option Description
Span Specifies the span of time for the chart data. The default is All. Other options are Full YearYear to Date, Year to Complete Month, Full Month, Full Week, Rolling Year by Month, Rolling Year, Rolling 2 Years, Rolling 3 Years, and Rolling Week by Day.
Period Specifies a time period. Available options depend on the Span setting, and include Years, Months, Quarters, and Days.
Label Format Specifies the date label format. For more information, see Spectre Format Conventions.

NOTES:

  • If the span is set to All, setting the period to Days is equivalent to no date rollup. In that case, setting the label format affects tooltips and $(ROW_STRING) macros only. The specified format is not applied to the chart axis label.
  • When the current month has fewer days than the previous month, you can use any date format string except for the Full Month / Days date roll-up.
  • You cannot specify a date rollup and time-series date range on the same portlet.
Option Description
Show Legend

Adds a legend to the chart. This property is selected by default. Clear the check box if you do not want to include a legend.

NOTE: This option is disabled on Gantt charts and scatter plot charts unless a Color Column is selected on the Color Settings dialog box.

Location

Specifies where the legend appears on the portlet. The default is Right, which displays the legend in the top right corner of the portlet. Other options are Left (top left corner), Top (centered above the chart), and Bottom (centered below the chart).
Height

Specifies the height of the legend, in pixels. The default is Automatic, which sets the height to fit all names displayed in the legend.

NOTE: The full text of the legend does not display if this setting is too low. If this occurs, the legend appears truncated and appended with an ellipsis.
Label Column Applies to MultiTab charts. Specifies a dimension whose values you want to use as legend labels. This is useful when multiple dimension values have the same label or when the label has a calculated value appended to it.
Colors Applies to MultiTab charts. Specifies 16 color settings used to display data.

Matrix portlet print settings dialog box.

Specifies preferences for printed headers and footers on files that are exported as a result of Excel or PDF click actions.

Option Description
Title Text Specifies a title for the chart.
Title Font Specifies the title font style and size. Default is Verdana, 16px, bold.
Color Specifies the title text color, opacity, hue, saturation, and lightness. Default is black.
Option Description

Synchronize dimensions with other portlets



This option works in conjunction with the measures portlet feature, Allow Dimension Changing. When the user changes the dimension on the measures portlet, the change applies to the chart portlet as well. The following conditions must be met:

  • Both portlets must display the same dimension before the change.

  • The new dimension must be available in the data source of both portlets.

MultiTab bars do not offer the display settings options.

Option Description
# Items Specifies the number of items that display on the chart. For example, setting this option to 4 for a bar chart produces a chart with the top four bars based on the sort value. All items display by default. This option is not available for MultiTab charts.
Filter Specifies a measure or Spectre calculation that is used to filter the data that displays. See also Using a Measure as a Filter.
Show Others If # Items is selected, this option displays the sum of the remaining items. For example, setting # Items to 4 for a bar chart, and then selecting this option produces a chart with the top four bars plus a fifth bar showing the sum of the remaining items.
Hide Null Values

Measure Factory license: This option hides any rows where all of the plotted values are either null, unknown, or 0.

Standard license: This option hides any rows where all of the plotted values are either null or unknown.
Sort By Specifies a dimension or value on which to sort. The default is No sort. This option is not available for MultiTab charts.
Sort Up Select if you want the dimension or value to sort up.
Sort Down Select if you want the dimension or value to sort down.

Combination chart

In addition to the options that apply to all chart types, the following options apply to combination charts.

Additional values, with customizable Value settings. To add a value, select Add a value on the main page:

Option Description
Column Specifies a value column.
Measure Value Applies to Measure Factory. Specifies whether to use the measure value or a threshold that is defined in the measure factory.
Time series icon that looks like a gear. Applies to Measure Factory. Opens the time series mode settings box. Options are Basic and Advanced.
Basic time series settings

Applies to Measure Factory. Basic features are as follows:

DateRange



Specifies the date range. Options are:

  • Year to Date (The first day of the year returns 0)
  • Year to Complete Month (The first month of the year returns data for all of last year)
  • Quarter to Date (The first day of the quarter returns 0)
  • Month to Date (The first day of the month returns 0)
  • Week to Date (The first day of the week returns 0)
  • Complete Year
  • Complete Quarter
  • Complete Month
  • Complete Week
  • Complete Day
  • Rolling Year by Month (the last 12 complete months)
  • Year
  • Future Months
  • Time Range QuickView

Time period



Specifies the time period. Options are:

  • All
  • Current
  • Previous
  • Current Versus Previous
  • Current Versus Previous (%)
  • Previous Year
  • Current Versus Previous Year
  • Current Versus Previous Year (%)
Type

Specifies the type of secondary chart. The default is Line. Other options are Area, Column, Spline, and Spline Area.

TIP: Under More settings > Advanced, you can opt to stack the charts.

Color Specifies the color of the data value.
Point Style Applies to line and spline charts. Specifies the shape of the data points. The default is None. Other options are Circle, Square, X, Diamond, Triangle Up, and Triangle Down.
Line Style Applies to line and spline charts. Specifies the appearance of the line. The default is Solid. Other options are Thick, Dashed, and Dotted.
Axis

Specifies the location of the Axis scale.

For combination charts, the default is Left. The other option is Right.

You can select a different axis for different values.
Show Mean

Shows the data mean on the chart. Selecting this option enables the color and line type choice lists, and the Label check box for the mean line.

NOTE: If selected, the Label displays as MEAN: <number>.
Show Median

Shows the data median on the chart. Selecting this option enables the color and line type choice lists, and the Label check box for the median line.

NOTE: If selected, the Label displays as MEDIAN: <number>.
Label Specifies a label for the value column. The column name is the default label. This option accepts portlet-level macros.

Trellis chart

In addition to the options that apply to all chart types, the following options apply to trellis charts.

Option Description
Subchart Type

Specifies the appearance of the individual charts that when combined, make up the trellis chart. The default is Column. Other options are Area, MultiTab Area, MultiTab Spline Area, MultiTab Stacked Area, Spline Area, Bar, Histogram, MultiTab Bar, MultiTab Column, MultiTab Stacked Bar, MultiTab Stacked Column, Line, MultiTab Line, MultiTab Sparkline, MultiTab Spline, Sparkline, and Spline.
Category

Specifies a secondary dimension that is used to define the subchart dimension.
Group Available with MultiTab Subcharts. Specifies a tertiary dimension that is used in MultiTab subcharts to divide the first dimension's data into categories.

Additional values, with customizable Value settings. To add a value, select Add a value on the main page.

Option Description
Column Specifies a value column.
Label Specifies a label for the value column. The column name is the default label. This option accepts portlet-level macros.
Type Specifies the type of secondary chart. The default is Line. Other options are Area, Column, Spline, and Spline Area.
Color Specifies the color of the data value.

Show Mean



Shows the data mean on the chart. Selecting this option enables the color and line type choice lists, and the Label check box for the mean line.

NOTE: If selected, the Label displays as MEAN: <number>.

Show Median



Shows the data median on the chart. Selecting this option enables the color and line type choice lists, and the Label check box for the median line.

NOTE: If selected, the Label displays as MEDIAN: <number>.

More settings for combination charts

Option Description
Label Column Specifies a dimension whose values you want to use as labels on the horizontal axis The default is the values of the dimension selected to populate the chart. If the columns are too narrow for the dimension value labels to fit, DivePort shows a subset of the labels only.
Slant labels Specifies that horizontal axis labels are slanted.
Label Format Applies to date dimensions. For more information, see Spectre Format Conventions.

Scale Type



Specifies the type of scale. The default is Linear (0, 10, 20, 30...). The other option is Logarithmic (0, 10, 100, 1000...).

NOTE: If there are two vertical axes, this setting applies to both axes.

Always include zero



Available when the Scale Minimum is set to Automatic. Ensures that the scale includes 0.

NOTE: Under certain conditions, such as when the scale minimum or maximum value is set to 0, this option is set automatically and cannot be changed.

Match zeros



Available on line charts and spline charts. Positions the zero-point at the same height in both left and right axes. Clear this option to disable this feature.

NOTES: Under certain conditions, such as when the scale minimum and maximum value is the same for both axes, this option is set automatically and cannot be changed. Similarly, if the axes scales do not align, such as when the scale minimum on one axis is equal to the scale maximum on the other axis, this option is cleared automatically and cannot be changed.

In other chart types, you can override the match-zeros default behavior by setting a minimum and maximum scale value for both right and left axes.
Left Axis/Right Axis Settings or Bottom Axis/Top Axis Settings

NOTE: Double axes settings apply to Area, Spline Area, Bar, Column, Line, Histogram, Sparkline, and Spline charts.

  • If both left and right axes render, the primary (left) axis scale does not necessarily match the secondary (right) axis scale.
  • If the chart portlet does not provide enough space for both axis scales to render, neither scale renders.

The Closedchart legend indicates left (L) and right (R) or bottom (B) and top (T) to indicate the scale for the dimension values.

An example of a column chart with double vertical axis.

Scale Minimum



Specifies the lowest value on the scale. The default, Automatic, calculates the minimum based on the values displayed in the chart.

NOTE: Macros are not supported options.

Scale Maximum



Specifies the highest value on the scale. The default, Automatic, calculates the maximum based on the values displayed in the chart.

NOTE: Macros are not supported options.

Scale Format



Sets the format of the scale values.

The default, Auto, is based on the format of the first value calculation.

NOTE: You can specify a format with up to 20 digits following a decimal point. If you specify more than 20 fractional digits, the extra digits are ignored and the next time you open the Edit Chart Portlet dialog box, the scale format is truncated accordingly.

For more information on number formats in DivePort, see Formatting Numeric Values.
Option Description

Show Legend



Adds a legend to the chart. This property is selected by default. Clear the check box if you do not want to include a legend.

NOTE: This option is disabled on scatter plot charts unless a Color Column is selected on the Color Settings dialog box.

Location



Specifies where the legend appears on the portlet. The default is Right, which displays the legend in the top right corner of the portlet. Other options are Left (top left corner), Top (centered above the chart), and Bottom (centered below the chart).

Width



Specifies the width of the legend, in pixels. The default is Automatic, which sets the width to fit all names displayed in the legend.

NOTE: The full text of the legend does not display if this setting is too low. If this occurs, the legend appears truncated and appended with an ellipsis.

Matrix portlet print settings dialog box.

Specifies preferences for printed headers and footers on files that are exported as a result of Excel or PDF click actions.

Option Description
Title Text Specifies a title for the chart.
Title Font Specifies the title font style and size. Default is Verdana, 16px, bold.
Color Specifies the title text color, opacity, hue, saturation, and lightness. Default is black.

Applies to combination charts

Option Description

Synchronize dimensions with other portlets



This option works in conjunction with the measures portlet feature, Allow Dimension Changing. When the user changes the dimension on the measures portlet, the change applies to the chart portlet as well. The following conditions must be met:

  • Both portlets must display the same dimension before the change.

  • The new dimension must be available in the data source of both portlets.
Interpolation Applies to combination/spline charts. Specifies the type of interpolation line used on the chart. The default value is Cardinal. The other option is Monotone.
Stack Columns Applies to combination charts. Specifies that the bar charts are stacked instead of being drawn side-by-side.
Stack Areas

Applies to combination charts. Specifies that the area charts are Closedstacked instead of starting on the same point on the vertical axis.

An example of a stacked area chart, with the values labeled.

Arc chart

In addition to the options that apply to all chart types, the following options apply to arc charts.

Option Description
Source Column Specifies the dimension that is used as a departure point for paths on the chart.
Target Column Specifies the dimension that is used as an arrival point for paths on the chart. Target column values that match source column values display as a single node on the chart.
Orientation Specifies the orientation of the chart. The default is Horizontal axis with arcs above. Other options are Horizontal axis with arcs below, Vertical axis with arcs right, and Vertical axis with arcs left.
Colors: Forward Specifies the color of the arcs if the connection between nodes is in the forward direction. (Left to Right or Top to Bottom.)
Colors: Backward Specifies the color of the arcs if the connection between nodes is in the backwards direction. (Right to Left or Bottom to Top.)

More settings for arc charts

Option Description
Label Column Specifies a dimension whose values you want to use as labels on the axis that displays the dimension values. The default is the values of the dimension selected to populate the chart. If the columns are too narrow for the dimension value labels to fit, DivePort shows a subset of the labels only.
Label Format

Applies to date-type and period-type dimensions. Specifies the date label format. For more information, see Spectre Format Conventions.

NOTE: For date dimensions, the label format affects the chart hover text only, not the axis label.
Label Width Applies to charts with a vertical orientation. Specifies the width of the vertical axis label, in pixels. The default Automatic, uses the dimension values to determine the width. Labels that are longer than this width setting are truncated and appended with an ellipses. Labels that are shorter than this width are right-justified.
Show labels Specifies that node labels appear on the chart. This option is selected by default.
Slant labels Applies to charts with a horizontal orientation. Specifies that node labels are slanted. This option is selected by default.
Option Description
Show Legend

Adds a legend to the chart. This property is selected by default. Clear the check box if you do not want to include a legend.

NOTE: This option is disabled on scatter plot charts unless a Color Column is selected on the Color Settings dialog box.

Location

Specifies where the legend appears on the portlet. The default is Right, which displays the legend in the top right corner of the portlet. Other options are Left (top left corner) and Bottom (centered below the chart).

Width/Height



Specifies the width or height of the legend, in pixels. The default is Automatic, which sets the width/height to fit all names displayed in the legend.

NOTE: The full text of the legend does not display if this setting is too low. If this occurs, the legend appears truncated and appended with an ellipsis.

Label Column



 Applies to MultiTab, arc, chord pie, and trellis charts. Specifies a dimension whose values you want to use as legend labels. This is useful when multiple dimension values have the same label or when the label has a calculated value appended to it.
Forward label Identifies the forward direction. The default is Left to Right or Top to Bottom.
Backward label Identifies the backward direction. The default is Right to Left or Bottom to Top.

Matrix portlet print settings dialog box.

Specifies preferences for printed headers and footers on files that are exported as a result of Excel or PDF click actions.

Option Description
Title Text Specifies a title for the chart.
Title Font Specifies the title font style and size. Default is Verdana, 16px, bold.
Color Specifies the title text color, opacity, hue, saturation, and lightness. Default is black.

Shorten labels to <n> characters



Specifies the maximum number of characters that labels display. When this option is selected, the label is truncated, and appended with an ellipsis.

NOTE: The ellipsis counts as three characters. The full label displays when you place your pointer on the arc.
Option Description

Synchronize dimensions with other portlets



This option works in conjunction with the measures portlet feature, Allow Dimension Changing. When the user changes the dimension on the measures portlet, the change applies to the chart portlet as well. The following conditions must be met:

  • Both portlets must display the same dimension before the change.

  • The new dimension must be available in the data source of both portlets.

Chord chart

In addition to the options that apply to all chart types, the following options apply to chord charts.

Option Description
Source Column Specifies the dimension that is used as a departure point for paths on the chart.
Target Column Specifies the dimension that is used as an arrival point for paths on the chart. Target column values that match source column values display as a single node on the chart.

More settings for chord charts

Option Description
Label Column Specifies a dimension whose values you want to use as legend labels. This is useful when multiple dimension values have the same label or when the label has a calculated value appended to it.
Colors Specifies 16 color settings used to display data.

Matrix portlet print settings dialog box.

Specifies preferences for printed headers and footers on files that are exported as a result of Excel or PDF click actions.

Option Description
Title Text Specifies a title for the chart.
Title Font Specifies the title font style and size. Default is Verdana, 16px, bold.
Color Specifies the title text color, opacity, hue, saturation, and lightness. Default is black.
Shorten labels to <n> characters

Specifies the maximum number of characters that labels display. When this option is selected, the label is truncated, and appended with an ellipsis.

NOTE: The ellipsis counts as three characters. The full label displays when you place your pointer on the label.

Sankey diagram

In addition to the options that apply to all chart types, the following options apply to Sankey diagrams.

NOTE: If the data source is Dive file or marker, the first dimension is used as the source dimension and the second dimension is uses as the target dimension. If there is a third dimension, it is used as the position dimension. Otherwise, automatic positioning is used.

Option Description
Source dimension Specifies the dimension that is used as a beginning node for the flow.
Target dimension Specifies the dimension that is used as an end node for the flow.
Determine flow positions Specifies if the nodes are positioned automatically or based on the position dimension. The default is Based on dimension. The other option is Automatically.
Select a position dimension Specifies the placement of the nodes. Nodes at the same position are placed in the same column.
Select a value Specifies the weight of the link.
Measure Value Applies to Measure Factory. Specifies whether to use the measure value or a threshold that is defined in the measure factory.
Time series icon that looks like a gear. Applies to Measure Factory. Opens the time series mode settings box. Options are Basic and Advanced.
Basic time series settings

Applies to Measure Factory. Basic features are as follows:

DateRange



Specifies the date range. Options are:

  • Year to Date (The first day of the year returns 0)
  • Year to Complete Month (The first month of the year returns data for all of last year)
  • Quarter to Date (The first day of the quarter returns 0)
  • Month to Date (The first day of the month returns 0)
  • Week to Date (The first day of the week returns 0)
  • Complete Year
  • Complete Quarter
  • Complete Month
  • Complete Week
  • Complete Day
  • Rolling Year by Month (the last 12 complete months)
  • Year
  • Future Months
  • Time Range QuickView

Time period



Specifies the time period. Options are:

  • All
  • Current
  • Previous
  • Current Versus Previous
  • Current Versus Previous (%)
  • Previous Year
  • Current Versus Previous Year
  • Current Versus Previous Year (%)

Advanced time series settings

Applies to Measure Factory. Advanced features allow the following customization of the time period:

To Date

Uses the specified time range and offset values to define the time series. The default Time Range is the current Year to complete Day. Other options are Year to complete Month, Year to complete Quarter, Week to complete Day, Month to complete Day, and Quarter to complete Day.

The Offset value can adjust the time series by the specified time period. For example, setting the Time Range to Year to complete Day, with an offset of -1 Year, is the equivalent of last year to complete day. Available options for the offset time period are those time periods that are larger than or equal to the first time range.

Relative

Uses the specified complete time range and offset values to define the time series. The default Time Range is 1 Year, which is the current complete year. Other time period options are Day, Week, Month, and Quarter.

The Offset value can adjust the time series by the specified time period. For example, setting the Time Range to 1 Year, with an offset of -1 Year, is the equivalent of the year before the current complete year. Available options for the offset time period are those time periods that are larger than or equal to the specified time range.

Absolute

Uses the specified time range and offset values to define the time series. The Time Range default is Month 1 of the current year. The other time period option is Quarter. This option supports custom calendars.

The Offset value can adjust the time series by the specified number of years.
Orientation Specifies if the data flows horizontally or vertically.

More settings for Sankey diagrams

Option Description
Flows Specifies the color of the flow lines.
Stages Specifies the colors for up to 15 nodes.

Matrix portlet print settings dialog box.

Specifies preferences for printed headers and footers on files that are exported as a result of Excel or PDF click actions.

Option Description
Title Text Specifies a title for the diagram.
Title Font Specifies the title font style and size. Default is Verdana, 16px, bold.
Color Specifies the title text color, opacity, saturation, and lightness. Default is black.
Shorten labels to <n> characters

Specifies the maximum number of characters that display for node labels. When this option is selected, the label is truncated, and appended with an ellipsis.

NOTE: The ellipsis counts as three characters. The full label displays when you place your pointer on the label.

Node sort order specifies if the nodes in each stage are sorted:

  • None places the nodes in a way that minimizes the number of overlapping links.

  • Up or Down sorts the nodes in each stage according to their data type. Strings are sorted alphabetically, integers are sorted numerically, and dates are sorted by time.

Option Description
Synchronize dimensions with other portlets

This option works in conjunction with the measures portlet feature, Allow Dimension Changing. When the user changes the dimension on the measures portlet, the change applies to the chart portlet as well. The following conditions must be met:

  • Both portlets must display the same dimension before the change.

  • The new dimension must be available in the data source of both portlets.

Limit depth of highlight upon node click to <n> links Specifies a limit to the depth of highlighting links when a node is clicked. The selected node is highlighted as well as the links within this depth setting.

Specifies the tooltip text that displays when the pointer is placed on a flow line. The default behavior is to display the source, target, and value.

Candlestick and Open-high-low-close charts

In addition to the options that apply to all chart types, the following options apply to candlestick charts and open-high-low-close charts.

Option Description
Open

Specifies the value at the Closedbeginning of the time period.

An example of a candlestick chart, showing the location of the open value.

High

Specifies the Closedhighest value in the time period.

An example of a candlestick chart, showing the location of the high value.

Low

Specifies the Closedlowest value in the time period.

An example of a candlestick chart, showing the location of the low value.

More settings for finance charts

Option Description
Label Column Specifies a dimension whose values you want to use as labels on the axis that displays the dimension values. The default is the values of the dimension selected to populate the chart. If the columns are too narrow for the dimension value labels to fit, DivePort shows a subset of the labels only.
Slant labels Specifies that horizontal axis labels are slanted.
Label Format

Applies to date-type and period-type dimensions. Specifies the date label format. For more information, see Spectre Format Conventions.

NOTE: For date dimensions, the label format affects the chart hover text only, not the axis label.
Always include zero

Available when the Scale Minimum is set to Automatic. Ensures that the scale includes 0.

NOTE: Under certain conditions, such as when the scale minimum or maximum value is set to 0, this option is set automatically and cannot be changed.

Scale Minimum

Specifies the lowest value on the scale. The default, Automatic, calculates the minimum based on the values displayed in the chart.

NOTE: Macros are not supported options.
Scale Maximum

Specifies the highest value on the scale. The default, Automatic, calculates the maximum based on the values displayed in the chart.

NOTE: Macros are not supported options.
Scale Format

Sets the format of the scale values.

The default, Automatic, is based on the format of the first value calculation.

NOTE: You can specify a format with up to 20 digits following a decimal point. If you specify more than 20 fractional digits, the extra digits are ignored and the next time you open the Edit Chart Portlet dialog box, the scale format is truncated accordingly.

For more information on number formats in DivePort, see Formatting Numeric Values.



Option Description
Title Text Specifies a title for the chart.
Title Font Specifies the title font style and size. Default is Verdana, 16px, bold.
Color Specifies the title text color, opacity, hue, saturation, and lightness. Default is black.
Option Description
Synchronize dimensions with other portlets

This option works in conjunction with the measures portlet feature, Allow Dimension Changing. When the user changes the dimension on the measures portlet, the change applies to the chart portlet as well. The following conditions must be met:

  • Both portlets must display the same dimension before the change.

  • The new dimension must be available in the data source of both portlets.

Line, Sparkline, and Spline charts

In addition to the options that apply to all chart types, the following options apply to line, sparkline, and spline charts.

Additional values, with customizable Value settings. To add a value, click Add a value on the main page.

More settings for line charts

Option Description
Label Column Specifies a dimension whose values you want to use as labels on the horizontal axis. The default is the values of the dimension selected to populate the chart. If the columns are too narrow for the dimension value labels to fit, DivePort shows a subset of the labels only.
Slant labels Specifies that horizontal axis labels are slanted.
Label Format

Applies to date-type and period-type dimensions. Specifies the date label format. For more information, see Spectre Format Conventions.

NOTE: For date dimensions, the label format affects the chart hover text only, not the axis label.
Scale Type

Specifies the type of scale. The default is Linear (0, 10, 20, 30...). The other option is Logarithmic (0, 10, 100, 1000...).

NOTE: If there are two vertical axes, this setting applies to both axes.

Always include zero

Available when the Scale Minimum is set to Automatic. Ensures that the scale includes 0.

NOTE: Under certain conditions, such as when the scale minimum or maximum value is set to 0, this option is set automatically and cannot be changed.

Scale Minimum

Specifies the lowest value on the scale. The default, Automatic, calculates the minimum based on the values displayed in the chart.

NOTE: Macros are not supported options.
Scale Maximum

Specifies the highest value on the scale. The default, Automatic, calculates the maximum based on the values displayed in the chart.

NOTE: Macros are not supported options.
Scale Format

Sets the format of the scale values.

The default, Automatic, is based on the format of the first value calculation.

NOTE: You can specify a format with up to 20 digits following a decimal point. If you specify more than 20 fractional digits, the extra digits are ignored and the next time you open the Edit Chart Portlet dialog box, the scale format is truncated accordingly.

For more information about number formats in DivePort, see Formatting Numeric Values.

Edit chart portlet, date rollup settings dialog box.

Option Description
Span Specifies the span of time for the chart data. The default is All. Other options are Full YearYear to Date, Year to Complete Month, Full Month, Full Week, Rolling Year by Month, Rolling Year, Rolling 2 Years, Rolling 3 Years, and Rolling Week by Day.
Period Specifies a time period. Available options depend on the Span setting, and include Years, Months, Quarters, and Days.
Label Format Specifies the date label format. For more information, see Spectre Format Conventions.

NOTES:

  • If the span is set to All, setting the period to Days is equivalent to no date rollup. In that case, setting the label format affects tooltips and $(ROW_STRING) macros only. The specified format is not applied to the chart axis label.
  • When the current month has fewer days than the previous month, you can use any date format string except for the Full Month / Days date roll-up.
  • You cannot specify a date rollup and time-series date range on the same portlet.

Applies to line and spline charts.

Option Description
Show Legend

Adds a legend to the chart. This property is selected by default. Clear the check box if you do not want to include a legend.

NOTE: This option is disabled on scatter plot charts unless a Color Column is selected on the Color Settings dialog box.

Location

Specifies where the legend appears on the portlet. The default is Right, which displays the legend in the top right corner of the portlet. Other options are Left (top left corner) and Bottom (centered below the chart).
Width

Specifies the width of the legend, in pixels. The default is Automatic, which sets the width to fit all names displayed in the legend.

NOTE: The full text of the legend does not display if this setting is too low. If this occurs, the legend appears truncated and appended with an ellipsis.

Matrix portlet print settings dialog box.

Specifies preferences for printed headers and footers on files that are exported as a result of Excel or PDF click actions.

Option Description
Title Text Specifies a title for the chart.
Title Font Specifies the title font style and size. Default is Verdana, 16px, bold.
Color Specifies the title text color, opacity, hue, saturation, and lightness. Default is black.
Option Description
# Items Specifies the number of items that display on the chart. For example, setting this option to 4 for a bar chart produces a chart with the top four bars based on the sort value. All items display by default. This option is not available for MultiTab charts.
Filter Specifies a measure or Spectre calculation that is used to filter the data that displays. See also Using a Measure as a Filter.
Show Others If # Items is selected, this option displays the sum of the remaining items. For example, setting # Items to 4 for a bar chart, and then selecting this option produces a chart with the top four bars plus a fifth bar showing the sum of the remaining items.
Hide Null Values

Measure Factory license: This option hides any rows where all of the plotted values are either null, unknown, or 0.

Standard license: This option hides any rows where all of the plotted values are either null or unknown.
Sort By Specifies a dimension or value on which to sort. The default is No sort. This option is not available for MultiTab charts.
Sort Up Select if you want the dimension or value to sort up.
Sort Down Select if you want the dimension or value to sort down.
Option Description
Synchronize dimensions with other portlets

This option works in conjunction with the measures portlet feature, Allow Dimension Changing. When the user changes the dimension on the measures portlet, the change applies to the chart portlet as well. The following conditions must be met:

  • Both portlets must display the same dimension before the change.

  • The new dimension must be available in the data source of both portlets.
Interpolation Applies to spline charts. Specifies the type of interpolation line used on the chart. The default value is Cardinal. The other option is Monotone.

MultiTab Line, MultiTab Sparkline, and MultiTab Spline charts

In addition to the options that apply to all chart types, the following options apply to MultiTab line, MultiTab sparkline, and MultiTab spline charts.

Option Description
Category Specifies a secondary dimension that is used in MultiTab charts to divide the first dimension's data into categories.
Measure Value Applies to Measure Factory. Specifies whether to use the measure value or a threshold that is defined in the measure factory.
Time series icon that looks like a gear. Applies to Measure Factory. Opens the time series mode settings box. Options are Basic and Advanced.
Basic time series settings

Applies to Measure Factory. Basic features are as follows:

DateRange



Specifies the date range. Options are:

  • Year to Date (The first day of the year returns 0)
  • Year to Complete Month (The first month of the year returns data for all of last year)
  • Month to Date (The first day of the month returns 0)
  • Week to Date (The first day of the week returns 0)
  • Complete Year
  • Complete Month
  • Complete Week
  • Complete Day
  • Rolling Year by Month (the last 12 complete months)
  • Year
  • Future Months

Time period



Specifies the time period. Options are:

  • All
  • Current
  • Previous
  • Current Versus Previous
  • Current Versus Previous (%)
  • Previous Year
  • Current Versus Previous Year
  • Current Versus Previous Year (%)

Advanced time series settings

Applies to Measure Factory. Advanced features allow the following customization of the time period:

To Date

Uses the specified time range and offset values to define the time series. The default is the current Year to complete Day. Other options are Year to complete Month, Year to complete Quarter, Week to complete Day, Month to complete Day, and Quarter to complete Day.

The offset value can adjust the time series by the specified time period. For example, setting the Time Range to Year to complete Day, with an offset of -1 Year, is the equivalent of last year to complete day. Available options for the offset time period are those time periods that are larger than or equal to the first time range.

Relative

Uses the specified complete time range and offset values to define the time series. The default is 1 Year, which is the current complete year. Other time period options are Day, Week, Month, and Quarter.

The offset value can adjust the time series by the specified time period. For example, setting the Time Range to 1 Year, with an offset of -1 Year, is the equivalent of the year before the current complete year. Available options for the offset time period are those time periods that are larger than or equal to the specified time range.

Absolute

Uses the specified time range and offset values to define the time series. The default is Month 1 of the current year. The other time period option is Quarter. This option supports custom calendars.

The offset value can adjust the time series by the specified number of years.
Time Range (Advanced)

Specifies a <time range> to complete <date>. ClosedOptions

  • Year to Complete Quarter
  • Year to Complete Month
  • Year to Complete Day
  • Quarter to Complete Month
  • Quarter to Complete Day
  • Month to Complete Day
  • Week to Complete Day
Offset (Advanced) Specifies an offset value to apply to the time series.

More settings for MultiTab line charts

Option Description
Label Column Specifies a dimension whose values you want to use as labels on the horizontal axis The default is the values of the dimension selected to populate the chart. If the columns are too narrow for the dimension value labels to fit, DivePort shows a subset of the labels only.
Label Format

Applies to date-type and period-type dimensions. Specifies the date label format. For more information, see Spectre Format Conventions.

NOTE: For date dimensions, the label format affects the chart hover text only, not the axis label.
Scale Type

Specifies the type of scale. The default is Linear (0, 10, 20, 30...). The other option is Logarithmic (0, 10, 100, 1000...).

NOTE: If there are two vertical axes, this setting applies to both axes.

Always include zero

Available when the Scale Minimum is set to Automatic. Ensures that the scale includes 0.

NOTE: Under certain conditions, such as when the scale minimum or maximum value is set to 0, this option is set automatically and cannot be changed.

Scale Minimum

Specifies the lowest value on the scale. The default, Automatic, calculates the minimum based on the values displayed in the chart.

NOTE: Macros are not supported options.
Scale Maximum

Specifies the highest value on the scale. The default, Automatic, calculates the maximum based on the values displayed in the chart.

NOTE: Macros are not supported options.

Applies to MultiTab Line and MultiTab Spline charts.

Option Description
Show Legend

Adds a legend to the chart. This property is selected by default. Clear the check box if you do not want to include a legend.

NOTE: This option is disabled on scatter plot charts unless a Color Column is selected on the Color Settings dialog box.

Location

Specifies where the legend appears on the portlet. The default is Right, which displays the legend in the top right corner of the portlet. Other options are Left (top left corner) and Bottom (centered below the chart).
Width

Specifies the width of the legend, in pixels. The default is Automatic, which sets the width to fit all labels displayed in the legend.

NOTE: The full text of the legend does not display if this setting is too low. If this occurs, the legend appears truncated and appended with an ellipsis.
Label Column Specifies a dimension whose values you want to use as legend labels. This is useful when multiple dimension values have the same label or when the label has a calculated value appended to it.
Colors Specifies 16 color settings used to display data.

Matrix portlet print settings dialog box.

Specifies preferences for printed headers and footers on files that are exported as a result of Excel or PDF click actions.

Option Description
Title Text Specifies a title for the chart.
Title Font Specifies the title font style and size. Default is Verdana, 16px, bold.
Color Specifies the title text color, opacity, hue, saturation, and lightness. Default is black.

Matrix portlet print settings dialog box.

Specifies preferences for printed headers and footers on files that are exported as a result of Excel or PDF click actions.

Option Description
Synchronize dimensions with other portlets

This option works in conjunction with the measures portlet feature, Allow Dimension Changing. When the user changes the dimension on the measures portlet, the change applies to the chart portlet as well. The following conditions must be met:

  • Both portlets must display the same dimension before the change.

  • The new dimension must be available in the data source of both portlets.

Stringline charts

In addition to the options that apply to all chart types, the following options apply to stringline charts.

Option Description
Category Specifies a secondary dimension that is used in MultiTab charts to divide the first dimension's data into categories.

Additional values, with customizable Value settings. To add a value, click Add a value on the main page.

Option Description
Column Specifies a measure or summary value to use as a column.
Measure Value Applies to Measure Factory. Specifies whether to use the measure value or a threshold that is defined in the measure factory.
Time series icon that looks like a gear. Applies to Measure Factory. Opens the time series mode settings box. Options are Basic and Advanced.
Basic time series settings

Applies to Measure Factory. Basic features are as follows:

DateRange



Specifies the date range. Options are:

  • Year to Date (The first day of the year returns 0)
  • Year to Complete Month (The first month of the year returns data for all of last year)
  • Month to Date (The first day of the month returns 0)
  • Week to Date (The first day of the week returns 0)
  • Complete Year
  • Complete Month
  • Complete Week
  • Complete Day
  • Rolling Year by Month (the last 12 complete months)
  • Year
  • Future Months

Time period



Specifies the time period. Options are:

  • All
  • Current
  • Previous
  • Current Versus Previous
  • Current Versus Previous (%)
  • Previous Year
  • Current Versus Previous Year
  • Current Versus Previous Year (%)

Advanced time series settings

Applies to Measure Factory. Advanced features allow the following customization of the time period:

To Date

Uses the specified time range and offset values to define the time series. The default Time Range is the current Year to complete Day. Other options are Year to complete Month, Year to complete Quarter, Week to complete Day, Month to complete Day, and Quarter to complete Day.

The offset value can adjust the time series by the specified time period. For example, setting the Time Range to Year to complete Day, with an offset of -1 Year, is the equivalent of last year to complete day. Available options for the offset time period are those time periods that are larger than or equal to the first time range.

Relative

Uses the specified complete time range and offset values to define the time series. The default Time Range is 1 Year, which is the current complete year. Other time period options are Day, Week, Month, and Quarter.

The offset value can adjust the time series by the specified time period. For example, setting the Time Range to 1 Year, with an offset of -1 Year, is the equivalent of the year before the current complete year. Available options for the offset time period are those time periods that are larger than or equal to the specified time range.

Absolute

Uses the specified time range and offset values to define the time series. The default Time Range is Month 1 of the current year. The other time period option is Quarter. This option supports custom calendars.

The offset value can adjust the time series by the specified number of years.
Label Specifies a label for the value column. The column name is the default label. This option accepts portlet-level macros.
Color Specifies the color of the data value.
Point Style Applies to line and spline charts. Specifies the shape of the data points. The default is None. Other options are Circle, Square, X, Diamond, Triangle Up, and Triangle Down.
Line Style Applies to line and spline charts. Specifies the appearance of the line. The default is Solid. Other options are Thick, Dashed, and Dotted.

More settings for stringline charts

Option Description
Flip axes Applies to stringline charts. Swaps the vertically-displayed dimension data with the horizontally-displayed value information.
Label Column Specifies a dimension whose values you want to use as labels on the horizontal axis The default is the values of the dimension selected to populate the chart. If the columns are too narrow for the dimension value labels to fit, DivePort shows a subset of the labels only.
Label Format

Applies to date-type and period-type dimensions. Specifies the date label format. For more information, see Spectre Format Conventions.

NOTE: For date dimensions, the label format affects the chart hover text only, not the axis label.
Label Width

Applies to charts with a vertical major axis displaying dimension data. Specifies the width of the major axis label, in pixels.

Labels that are longer than this width are truncated and appended with an ellipses.

Labels that are shorter than this width are right-justified.

Setting this option to 0 hides the labels.

Slant labels Available when the dimension is displayed on the horizontal axis (Flip axes is selected). Specifies that horizontal axis labels are slanted.
Scale Type

Specifies the type of scale. The default is Linear (0, 10, 20, 30...). The other option is Logarithmic (0, 10, 100, 1000...).

NOTE: If there are two vertical axes, this setting applies to both axes.

Always include zero

Available when the Scale Minimum is set to Automatic. Ensures that the scale includes 0.

NOTE: Under certain conditions, such as when the scale minimum or maximum value is set to 0, this option is set automatically and cannot be changed.

Scale Minimum

Specifies the lowest value on the scale. The default, Automatic, calculates the minimum based on the values displayed in the chart.

NOTE: Macros are not supported options.
Scale Maximum

Specifies the highest value on the scale. The default, Automatic, calculates the maximum based on the values displayed in the chart.

NOTE: Macros are not supported options.
Scale Format

Sets the format of the scale values.

The default, Auto, is based on the format of the first value calculation.

NOTE: You can specify a format with up to 20 digits following a decimal point. If you specify more than 20 fractional digits, the extra digits are ignored and the next time you open the Edit Chart Portlet dialog box, the scale format is truncated accordingly.

For more information on number formats in DivePort, see Formatting Numeric Values.

Applies to line and spline charts.

Option Description
Show Legend

Adds a legend to the chart. This property is selected by default. Clear the check box if you do not want to include a legend.

NOTE: This option is disabled on scatter plot charts unless a Color Column is selected on the Color Settings dialog box.

Location

Specifies where the legend appears on the portlet. T Other options are Right (top right corner), Left (top left corner) and Bottom (centered below the chart).
Height

Specifies the height of the legend, in pixels. The default is Automatic, which sets the height to fit all names displayed in the legend.

NOTE: The full text of the legend does not display if this setting is too low. If this occurs, the legend appears truncated and appended with an ellipsis.

Matrix portlet print settings dialog box.

Specifies preferences for printed headers and footers on files that are exported as a result of Excel or PDF click actions.

Option Description
Title Text Specifies a title for the chart.
Title Font Specifies the title font style and size. Default is Verdana, 16px, bold.
Color Specifies the title text color, opacity, hue, saturation, and lightness. Default is black.
Option Description
Ignore missing values

Applies to stringline charts. Specifies that a missing value does not cause the string to break, and all points are connected on the line.

Stringline chart with a broken string.

Option Description
Synchronize dimensions with other portlets

This option works in conjunction with the measures portlet feature, Allow Dimension Changing. When the user changes the dimension on the measures portlet, the change applies to the chart portlet as well. The following conditions must be met:

  • Both portlets must display the same dimension before the change.

  • The new dimension must be available in the data source of both portlets.

Scatter plot chart

In addition to the options that apply to all chart types, the following options apply to scatter plot charts.

Option Description
X Specifies the data that is plotted on the horizontal axis.
Y Specifies the data that is plotted on the vertical axis.

More settings for scatter plot charts

Separate axes settings are available for both horizontal and vertical axes.

Option Description
Label Column Specifies a dimension whose values you want to use as labels on the horizontal axis The default is the values of the dimension selected to populate the chart. If the columns are too narrow for the dimension value labels to fit, DivePort shows a subset of the labels only.
Slant labels Specifies that horizontal axis labels are slanted.
Scale Type

Specifies the type of scale. The default is Linear (0, 10, 20, 30...). The other option is Logarithmic (0, 10, 100, 1000...).

NOTE: If there are two vertical axes, this setting applies to both axes.

Always include zero

Available when the Scale Minimum is set to Automatic. Ensures that the scale includes 0.

NOTE: Under certain conditions, such as when the scale minimum or maximum value is set to 0, this option is set automatically and cannot be changed.

Scale Minimum

Specifies the lowest value on the scale. The default, Automatic, calculates the minimum based on the values displayed in the chart.

NOTE: Macros are not supported options.
Scale Maximum

Specifies the highest value on the scale. The default, Automatic, calculates the maximum based on the values displayed in the chart.

NOTE: Macros are not supported options.
Scale Format

Sets the format of the scale values.

The default, Automatic, is based on the format of the first value calculation.

NOTE: You can specify a format with up to 20 digits following a decimal point. If you specify more than 20 fractional digits, the extra digits are ignored and the next time you open the Edit Chart Portlet dialog box, the scale format is truncated accordingly.

For more information on number formats in DivePort, see Formatting Numeric Values.
Option Description
Show Legend

Adds a legend to the chart.

NOTE: This option is available only if a Color Column is selected on the Color Settings dialog box.

Location

Specifies where the legend appears on the portlet. The Other options are Left (top left corner) and Bottom (centered below the chart).
Height

Specifies the height of the legend, in pixels. The default is Automatic, which sets the height to fit all names displayed in the legend.

NOTE: The full text of the legend does not display if this setting is too low. If this occurs, the legend appears truncated and appended with an ellipsis.
Option Description
Color Column Specifies the column that you are customizing. Up to eight colors can be defined for different dimension values.
Column Label Specifies a heading label for the legend. This option accepts macros.
Show column name in legend

Adds a heading (column label) to the chart legend.

Column label

Time Range

Specifies the time range for data inclusion. ClosedOptions

  • Year to Date
  • Year to Complete Month
  • Month to Date
  • Week to Date
  • Complete Year
  • Complete Month
  • Complete Week
  • Complete Day
  • Rolling Year by Month (the last 12 complete months)
  • Year
  • Future Months
  • Time Range QuickView
Period

Specifies the time period of the data. ClosedOptions

  • All
  • Current
  • Previous
  • Current Versus Previous
  • Current Versus Previous %
  • Previous Year
  • Current Versus Previous Year
  • Current Versus Previous Year%
Scale Minimum Specifies the lowest value on the scale. The default, Automatic, calculates the minimum based on the values displayed in the chart.

NOTE: Macros are not supported options.
Scale Maximum Specifies the highest value on the scale. The default, Automatic, calculates the maximum based on the values displayed in the chart.

NOTE: Macros are not supported options.
Colors

Specifies the range of colors of the data points. If no column is selected at the top of this dialog box, the first color in the list is used for all points.

Scatter plot with colored points

Option Description
Size Column Defines a column that represents the point size. Higher column values display larger points.
Scale Minimum Specifies the lowest value on the scale. The default, Automatic, calculates the minimum based on the values displayed in the chart.

NOTE: Macros are not supported options.
Scale Maximum Specifies the highest value on the scale. The default, Automatic, calculates the maximum based on the values displayed in the chart.

NOTE: Macros are not supported options.
Point Size Minimum Specifies the minimum size of the data points, in pixels. The default is 2.
Point Size Maximum Specifies the maximum size of the data points, in pixels. The default is 10.
Option Description
Show Means Indicates that the mean value of both axes are drawn on the chart. You can specify a color and style for the line as well as whether or not a label is included. NOTE: If selected, the Labels display as MEAN: <number>.
Show Medians Indicates that the median value of both axes are drawn on the chart. You can specify a color and style for the line as well as whether or not a label is included. NOTE: If selected, the Labels display as MEDIAN: <number>.

Matrix portlet print settings dialog box.

Specifies preferences for printed headers and footers on files that are exported as a result of Excel or PDF click actions.

Option Description
Title Text Specifies a title for the chart.
Title Font Specifies the title font style and size. Default is Verdana, 16px, bold.
Color Specifies the title text color, opacity, hue, saturation, and lightness. Default is black.
Option Description
Synchronize dimensions with other portlets

This option works in conjunction with the measures portlet feature, Allow Dimension Changing. When the user changes the dimension on the measures portlet, the change applies to the chart portlet as well. The following conditions must be met:

  • Both portlets must display the same dimension before the change.

  • The new dimension must be available in the data source of both portlets.



Heatmatrix charts

In addition to the options that apply to all chart types, the following options apply to heatmatrix charts.

Option Description
Category

Specifies a secondary dimension that is used to split the first dimension's data into categories.
Measure Value Applies to Measure Factory. Specifies whether to use the measure value or a threshold that is defined in the measure factory.
Time series icon that looks like a gear. Applies to Measure Factory. Opens the time series mode settings box. Options are Basic and Advanced.
Basic time series settings

Applies to Measure Factory. Basic features are as follows:

DateRange



Specifies the date range. Options are:

  • Year to Date (The first day of the year returns 0)
  • Year to Complete Month (The first month of the year returns data for all of last year)
  • Month to Date (The first day of the month returns 0)
  • Week to Date (The first day of the week returns 0)
  • Complete Year
  • Complete Month
  • Complete Week
  • Complete Day
  • Rolling Year by Month (the last 12 complete months)
  • Year
  • Future Months

Time period



Specifies the time period. Options are:

  • All
  • Current
  • Previous
  • Current Versus Previous
  • Current Versus Previous (%)
  • Previous Year
  • Current Versus Previous Year
  • Current Versus Previous Year (%)

Advanced time series settings

Applies to Measure Factory. Advanced features allow the following customization of the time period:

To Date

Uses the specified time range and offset values to define the time series. The default is the current Year to complete Day. Other options are Year to complete Month, Year to complete Quarter, Week to complete Day, Month to complete Day, and Quarter to complete Day.

The offset value can adjust the time series by the specified time period. For example, setting the Time Range to Year to complete Day, with an offset of -1 Year, is the equivalent of last year to complete day. Available options for the offset time period are those time periods that are larger than or equal to the first time range.

Relative

Uses the specified complete time range and offset values to define the time series. The default is 1 Year, which is the current complete year. Other time period options are Day, Week, Month, and Quarter.

The offset value can adjust the time series by the specified time period. For example, setting the Time Range to 1 Year, with an offset of -1 Year, is the equivalent of the year before the current complete year. Available options for the offset time period are those time periods that are larger than or equal to the specified time range.

Absolute

Uses the specified time range and offset values to define the time series. The default is Month 1 of the current year. The other time period option is Quarter. This option supports custom calendars.

The offset value can adjust the time series by the specified number of years.
Time Range (Advanced)

Specifies a <time range> to complete <date>. ClosedOptions

  • Year to Complete Quarter
  • Year to Complete Month
  • Year to Complete Day
  • Quarter to Complete Month
  • Quarter to Complete Day
  • Month to Complete Day
  • Week to Complete Day
Offset (Advanced) Specifies an offset value to apply to the time series.

Mosaic charts

In addition to the options that apply to all chart types, the following options apply to mosaic charts.

Option Description
X Dimension Specifies the dimension whose values populate the horizontal axis.
Y Dimension Specifies the dimension whose values populate the vertical axis.
Measure Value Applies to Measure Factory. Specifies whether to use the measure value or a threshold that is defined in the measure factory.
Align Specifies if the bars are drawn vertically or horizontally.
Time series icon that looks like a gear. Applies to Measure Factory. Opens the time series mode settings box. Options are Basic and Advanced.
Basic time series settings

Applies to Measure Factory. Basic features are as follows:

DateRange



Specifies the date range. Options are:

  • Year to Date (The first day of the year returns 0)
  • Year to Complete Month (The first month of the year returns data for all of last year)
  • Month to Date (The first day of the month returns 0)
  • Week to Date (The first day of the week returns 0)
  • Complete Year
  • Complete Month
  • Complete Week
  • Complete Day
  • Rolling Year by Month (the last 12 complete months)
  • Year
  • Future Months

Time period



Specifies the time period. Options are:

  • All
  • Current
  • Previous
  • Current Versus Previous
  • Current Versus Previous (%)
  • Previous Year
  • Current Versus Previous Year
  • Current Versus Previous Year (%)

Advanced time series settings

Applies to Measure Factory. Advanced features allow the following customization of the time period:

To Date

Uses the specified time range and offset values to define the time series. The default is the current Year to complete Day. Other options are Year to complete Month, Year to complete Quarter, Week to complete Day, Month to complete Day, and Quarter to complete Day.

The offset value can adjust the time series by the specified time period. For example, setting the Time Range to Year to complete Day, with an offset of -1 Year, is the equivalent of last year to complete day. Available options for the offset time period are those time periods that are larger than or equal to the first time range.

Relative

Uses the specified complete time range and offset values to define the time series. The default is 1 Year, which is the current complete year. Other time period options are Day, Week, Month, and Quarter.

The offset value can adjust the time series by the specified time period. For example, setting the Time Range to 1 Year, with an offset of -1 Year, is the equivalent of the year before the current complete year. Available options for the offset time period are those time periods that are larger than or equal to the specified time range.

Absolute

Uses the specified time range and offset values to define the time series. The default is Month 1 of the current year. The other time period option is Quarter. This option supports custom calendars.

The offset value can adjust the time series by the specified number of years.
Time Range (Advanced)

Specifies a <time range> to complete <date>. ClosedOptions

  • Year to Complete Quarter
  • Year to Complete Month
  • Year to Complete Day
  • Quarter to Complete Month
  • Quarter to Complete Day
  • Month to Complete Day
  • Week to Complete Day
Offset (Advanced) Specifies an offset value to apply to the time series.

More settings for MultiTab charts

Option Description
Label Column Specifies a dimension whose values you want to use as labels on the specified axis The default is the values of the dimension selected to populate the chart.
Slant labels Specifies that horizontal axis labels are slanted.
Option Description
Show Legend

Adds a legend to the chart.

Location

Specifies where the legend appears on the portlet. The Left (top left corner), and Bottom (centered below the chart).
Width

Specifies the width of the legend, in pixels. The default is Automatic, which sets the width to fit all names displayed in the legend.

NOTE: The full text of the legend does not display if this setting is too low. If this occurs, the legend appears truncated and appended with an ellipsis.
Colors Applies to mosaic and treemap charts. Specifies 16 color settings used to display data.

Applies to heatmatrix charts.

Option Description
Color Scale Type

Specifies how the color scale uses color. The default is Gradient. The other options are Threshold and Binned.

Selecting Threshold opens a new page where you can set the threshold values.

Selecting Binned opens a new page where you can set the number of bins
Use Mid Adds a mid-point to the scale legend.
Min/Mid/Max Color Available when the Gradient scale type is selected. Specifies the colors used on the low, middle, and high points on the scale. The default values are red, yellow, and green.
Min/Mid/Max Value Specifies the data values that display the Min/Mid/Max colors. The default, Automatic uses the source data low, average, and high values. NOTE: Values outside of the Min/Max value range display on the chart, but their value cannot be determined by the legend. ClosedExample

Example of a chart with values outside of the legend range.



Applies to heatmatrix charts.

Option Description
Title Text Specifies a title for the chart.
Font Specifies the title font style, size, color, opacity, hue, saturation, and lightness. Default is Verdana, 16px, bold, black.

Matrix portlet print settings dialog box.

Specifies preferences for printed headers and footers on files that are exported as a result of Excel or PDF click actions.

Applies to charts.

Option Description
Title Text Specifies a title for the chart.
Title Font Specifies the title font style and size. Default is Verdana, 16px, bold.
Color Specifies the title text color, opacity, hue, saturation, and lightness. Default is black.
Option Description
Synchronize dimensions with other portlets

This option works in conjunction with the measures portlet feature, Allow Dimension Changing. When the user changes the dimension on the measures portlet, the change applies to the chart portlet as well. The following conditions must be met:

  • Both portlets must display the same dimension before the change.

  • The new dimension must be available in the data source of both portlets.
Show Values Applies to heatmatrix charts. Displays the data value in each cell.
Values Text Color Available when the Show Values advanced option is selected. Specifies the color of the text that appears in the portlet cells. The default is #000000 (black).
Blank Cell Color Applies to heatmatrix charts. Specifies the fill color for cells without data.



Donut and Pie charts

In addition to the options that apply to all chart types, the following options apply to donut and pie charts.

Option Description
Measure Value Applies to Measure Factory. Specifies whether to use the measure value or a threshold that is defined in the measure factory.
Time series icon that looks like a gear. Applies to Measure Factory. Opens the time series mode settings box. Options are Basic and Advanced.
Basic time series settings

Applies to Measure Factory. Basic features are as follows:

DateRange



Specifies the date range. Options are:

  • Year to Date (The first day of the year returns 0)
  • Year to Complete Month (The first month of the year returns data for all of last year)
  • Month to Date (The first day of the month returns 0)
  • Week to Date (The first day of the week returns 0)
  • Complete Year
  • Complete Month
  • Complete Week
  • Complete Day
  • Rolling Year by Month (the last 12 complete months)
  • Year
  • Future Months

Time period



Specifies the time period. Options are:

  • All
  • Current
  • Previous
  • Current Versus Previous
  • Current Versus Previous (%)
  • Previous Year
  • Current Versus Previous Year
  • Current Versus Previous Year (%)

Advanced time series settings

Applies to Measure Factory. Advanced features allow the following customization of the time period:

To Date

Uses the specified time range and offset values to define the time series. The default is the current Year to complete Day. Other options are Year to complete Month, Year to complete Quarter, Week to complete Day, Month to complete Day, and Quarter to complete Day.

The offset value can adjust the time series by the specified time period. For example, setting the Time Range to Year to complete Day, with an offset of -1 Year, is the equivalent of last year to complete day. Available options for the offset time period are those time periods that are larger than or equal to the first time range.

Relative

Uses the specified complete time range and offset values to define the time series. The default is 1 Year, which is the current complete year. Other time period options are Day, Week, Month, and Quarter.

The offset value can adjust the time series by the specified time period. For example, setting the Time Range to 1 Year, with an offset of -1 Year, is the equivalent of the year before the current complete year. Available options for the offset time period are those time periods that are larger than or equal to the specified time range.

Absolute

Uses the specified time range and offset values to define the time series. The default is Month 1 of the current year. The other time period option is Quarter. This option supports custom calendars.

The offset value can adjust the time series by the specified number of years.
Time Range (Advanced)

Specifies a <time range> to complete <date>. ClosedOptions

  • Year to Complete Quarter
  • Year to Complete Month
  • Year to Complete Day
  • Quarter to Complete Month
  • Quarter to Complete Day
  • Month to Complete Day
  • Week to Complete Day
Offset (Advanced) Specifies an offset value to apply to the time series.

More settings for pie charts

Option Description
Show Legend

Adds a legend to the chart. This property is selected by default. Clear the check box if you do not want to include a legend.

NOTE: This option is disabled on scatter plot charts unless a Color Column is selected on the Color Settings dialog box.

Show % Value

Adds the percent values for each wedge to the chart Closedlegend.

Chart legend showing the percent values.

Location

Specifies where the legend appears on the portlet. The default is Right, which displays the legend in the top right corner of the portlet. Other options are Left (top left corner) Top (centered above the chart), and Bottom (centered below the chart).
Width

Specifies the width of the legend, in pixels. The default is Automatic, which sets the width to fit all names displayed in the legend.

NOTE: The full text of the legend does not display if this setting is too low. If this occurs, the legend appears truncated and appended with an ellipsis.
Label Column Specifies a dimension whose values you want to use as legend labels. This is useful when multiple dimension values have the same label or when the label has a calculated value appended to it.
Colors Specifies 16 color settings used to display data.
Assign colors based on original data sort

Assigns colors to dimension values based on the original order of dimension values, instead of descending value order. This allows you to consistently assign the same color to specific values.

NOTE: If there are more than 16 values on the chart, this option can result in adjacent wedges with the same color.

Option Description
Title Text Specifies a title for the chart.
Title Font Specifies the title font style and size. Default is Verdana, 16px, bold.
Color Specifies the title text color, opacity, hue, saturation, and lightness. Default is black.

Applies to charts that use a cPlan, cBase, or factory file as its source.

Option Description
# Items Specifies the number of items that display on the chart. For example, setting this option to 4 for a bar chart produces a chart with the top four bars based on the sort value. All items display by default. This option is not available for MultiTab charts.
Filter Specifies a measure or Spectre calculation that is used to filter the data that displays. See also Using a Measure as a Filter.
Sort wedges by size, descending Sorts pie and donut charts from the largest wedge to the smallest wedge, starting in the top right of the chart. This is the default and recommended setting.
Sort wedges by dimension value

Sorts pie and donut charts in the same order as the rows in the data source, starting in the top right of the chart.

This option disables the # Items display option, and also disables the automatic inclusion of an Others wedge when there are many values.
Option Description
Synchronize dimensions with other portlets

This option works in conjunction with the measures portlet feature, Allow Dimension Changing. When the user changes the dimension on the measures portlet, the change applies to the chart portlet as well. The following conditions must be met:

  • Both portlets must display the same dimension before the change.

  • The new dimension must be available in the data source of both portlets.

Box Plot and Horizontal Box Plot charts

Available options depend on the data source type and DivePort version.

In addition to the options that apply to all chart types, the following options apply to box plot and horizontal box plot charts.

Option Description

Max



Specifies the Closedmaximum value of the whiskers.

An example of a box plot, showing the location of the max value.

High



Specifies the Closedhigh end of the box.

An example of a box plot, showing the high value.

Mid



Specifies the Closedmedian value.

An example of a box plot, showing the location of the median value.

Low



Specifies the Closedlow end of the box.

An example of a box plot, showing the location of the low value.

Min



Specifies the Closedminimum value of the whiskers.

An example of a box plot, showing the location of the min value.

More settings for statistic charts

Option Description
Label Column Specifies a dimension whose values you want to use as labels on the horizontal axis The default is the values of the dimension selected to populate the chart. If the columns are too narrow for the dimension value labels to fit, DivePort shows a subset of the labels only.
Slant labels Specifies that horizontal axis labels are slanted.
Always include zero

Available when the Scale Minimum is set to Automatic. Ensures that the scale includes 0.

NOTE: Under certain conditions, such as when the scale minimum or maximum value is set to 0, this option is set automatically and cannot be changed.

Scale Minimum

Specifies the lowest value on the scale. The default, Automatic, calculates the minimum based on the values displayed in the chart.

NOTE: Macros are not supported options.
Scale Maximum

Specifies the highest value on the scale. The default, Automatic, calculates the maximum based on the values displayed in the chart.

NOTE: Macros are not supported options.
Scale Format

Sets the format of the scale values.

The default, Auto, is based on the format of the first value calculation.

NOTE: You can specify a format with up to 20 digits following a decimal point. If you specify more than 20 fractional digits, the extra digits are ignored and the next time you open the Edit Chart Portlet dialog box, the scale format is truncated accordingly.

For more information on number formats in DivePort, see Formatting Numeric Values.
Option Description
Show Legend

Adds a legend to the chart. This property is selected by default. Clear the check box if you do not want to include a legend.

Location



Specifies where the legend appears on the portlet. The default for box plots is Right, which displays the legend in the top right corner of the portlet. The default for horizontal box plots is Top, which displays the legend centered above the chart. Other options are Left (top left corner) and Bottom (centered below the chart).

Height/Width



Specifies the height or width of the legend, in pixels. The default is Automatic, which sets the height or width to fit all names displayed in the legend.

NOTE: The full text of the legend does not display if this setting is too low. If this occurs, the legend appears truncated and appended with an ellipsis.

Option Description
Span Specifies the span of time for the chart data. The default is All. Other options are Full YearYear to Date, Year to Complete Month, Full Month, Full Week, Rolling Year by Month, Rolling Year, Rolling 2 Years, Rolling 3 Years, and Rolling Week by Day.
Period Specifies a time period. Available options depend on the Span setting, and include Years, Quarters, Months, and Days.
Label Format Specifies the date label format. For more information, see Spectre Format Conventions.

NOTES:

  • If the span is set to All, setting the period to Days is equivalent to no date rollup. In that case, setting the label format affects tooltips and $(ROW_STRING) macros only. The specified format is not applied to the chart axis label.
  • When the current month has fewer days than the previous month, you can use any date format string except for the Full Month / Days date rollup.
  • You cannot specify a date rollup and time-series date range on the same portlet.
  • The current time range is always applied to date rollups.

Applies to box plot and horizontal box plot charts. Specifies a column whose value is added as a point on the chart.

On the Additional points dialog box, select Add a value to open the Value settings dialog box.

Edit chart portlet, additional points value settings.

Option Description
ColumnSpecifies the column whose value you want to add to the chart.
Measure ValueApplies to Measure Factory. Specifies whether to use the measure value or a threshold that is defined in the measure factory.
Time series icon that looks like a gear.Applies to Measure Factory. Opens the time series mode settings box. Options are Basic and Advanced.
Basic time series settings

Applies to Measure Factory. Basic features are as follows:

DateRange



Specifies the date range. Options are:

  • Year to Date (The first day of the year returns 0)
  • Year to Complete Month (The first month of the year returns data for all of last year)
  • Month to Date (The first day of the month returns 0)
  • Week to Date (The first day of the week returns 0)
  • Complete Year
  • Complete Month
  • Complete Week
  • Complete Day
  • Rolling Year by Month (the last 12 complete months)
  • Year
  • Future Months

Time period



Specifies the time period. Options are:

  • All
  • Current
  • Previous
  • Current Versus Previous
  • Current Versus Previous (%)
  • Previous Year
  • Current Versus Previous Year
  • Current Versus Previous Year (%)

Advanced time series settings

Applies to Measure Factory. Advanced features allow the following customization of the time period:

To Date

Uses the specified time range and offset values to define the time series. The default is the current Year to complete Day. Other options are Year to complete Month, Year to complete Quarter, Week to complete Day, Month to complete Day, and Quarter to complete Day.

The offset value can adjust the time series by the specified time period. For example, setting the Time Range to Year to complete Day, with an offset of -1 Year, is the equivalent of last year to complete day. Available options for the offset time period are those time periods that are larger than or equal to the first time range.

Relative

Uses the specified complete time range and offset values to define the time series. The default is 1 Year, which is the current complete year. Other time period options are Day, Week, Month, and Quarter.

The offset value can adjust the time series by the specified time period. For example, setting the Time Range to 1 Year, with an offset of -1 Year, is the equivalent of the year before the current complete year. Available options for the offset time period are those time periods that are larger than or equal to the specified time range.

Absolute

Uses the specified time range and offset values to define the time series. The default is Month 1 of the current year. The other time period option is Quarter. This option supports custom calendars.

The offset value can adjust the time series by the specified number of years.

Time Range (Advanced)

Specifies a <time range> to complete <date>. ClosedOptions

  • Year to Complete Quarter
  • Year to Complete Month
  • Year to Complete Day
  • Quarter to Complete Month
  • Quarter to Complete Day
  • Month to Complete Day
  • Week to Complete Day
Offset (Advanced)Specifies an offset value to apply to the time series.
LabelSpecifies the point label that appears on the legend. The default is the column label.
ColorSpecifies the point color. The default is black, #000000.
Point Style

Specifies the shape of the point. The default is Dot. Other options are None, Circle, Square, X, Diamond, Triangle Up, and Triangle Down.

NOTE: If you set the point style to None, the point is not drawn on the graph; however, the point value is included in the pop-up message that opens when a user places the pointer on the graph.

Show in legendSpecifies if you want the point label to appear in the chart legend. The Legend Setting, Show Legend option must be selected for this setting to take effect.
Option Description
Title Text Specifies a title for the chart.
Title Font Specifies the title font style and size. Default is Verdana, 16px, bold.
Color Specifies the title text color, opacity, hue, saturation, and lightness. Default is black.
