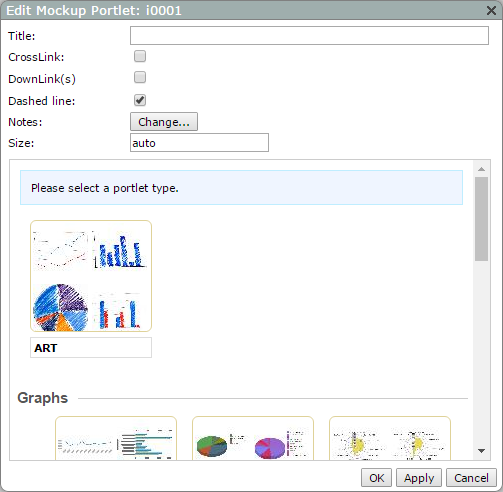

Mockup Portlet Options

Property Value
Title Specifies a title for the mockup portlet. The title appears centered over the image.
CrossLink

Adds a box in the mockup portlet to indicate the location of a CrossLink. This option is cleared by default. The tooltip for the CrossLink mockup displays This Portlet has a CrossLink.

DownLink(s)

Adds a box in the mockup portlet to indicate the location of a DownLink. This option is cleared by default.

Selecting this option activates the on Closedtext box, which is used to enter a tooltip message.

Edit Mockup portlet dialog box with the on box enabled.

on

Specifies a message that appears in a tooltip associated with the mock DownLink. This message represents the dimension being downlinked to, but you can enter a static value.

For example, if you enter Sales Region in the on box, the DownLink tooltip text displays This Portlet has a DownLink on Sales Region.

If you leave the on box blank, the tooltip for the DownLink mockup dispalys This Portlet has a DownLink.

Dashed line Specifies if the mock up image is outlined with a dashed line. This option is selected by default.
Notes

Specifies the text for the mockup's tooltip. Click Change to open the Edit Notes Closeddialog box, which you can use to add a tooltip to the mockup portlet.

Edit notes dialog box.

Size

Specifies the width and height of the portlet instance, in pixels. The default, auto, uses the value specified in the Portlet Settings dialog box. The Size can be changed by entering a value in the format width height.

NOTE: Alternatively, you can resize a portlet on an unlocked page by clicking and dragging the portlet resizing nodes.

Please select a portlet type

Selects an image to display in the portlet. The following types are available: ART, Basic Plots, Pie Plots, Radar Graphs, Scatter Plots, Stack Plots, Indicators, Measures, Reports, and Tabulars.

The representative thumbnail displays in the portlet.
