Parameter Process Node

A Parameter node is a Production process node that defines parameters whose values can be used by subsequent nodes that support the use of parameters.

Production Parameter Node

These values can be supplied by a text file or listed individually in the Parameters pane. To use these parameters, a node must be in the same branch of the script as the Parameter node.

The Parameter node has Closedthree panes where you set attributes.

Production Parameter Node All Panes

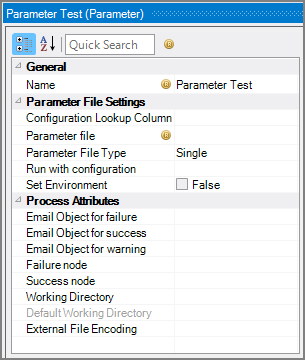

You set attributes for the Parameter node in the Closednode attributes pane.

Production Parameter Node Attributes

Attribute Description
Name Specify a descriptive name for the node. Lower case names maximize usage of the available space.
Configuration Lookup Column Specify a column to use as the lookup for a specific configuration. By default, the first column in the Parameter file is used as the lookup.
Parameter file
(Required if no Parameters attribute is set)

Specify a text file that contains the parameters. To select the file, use the browse button (...) that appears when you click in the empty Parameter file box.

This attribute and the Parameters attribute are mutually exclusive.

See also the External File Encoding attribute.
Parameter File Type
(Required if Parameter file attribute is set)		 Select the Parameter file type: Single or Multiple. The default is Single.
  • Single—Each row of the file is considered a single configuration. Each column after the first column represents the parameters to be created. The column name is the parameter name. This configuration is useful if the same parameters are required for each configuration.
  • Multiple—Each configuration can be split over multiple rows. There must be exactly three columns:
    • Lookup column to select the configuration
    • Parameter name column
    • Parameter value column
    This Parameter file type is useful when the number of parameters or the parameter names vary between the different configurations.
See examples for each Parameter file type in the considerations section after this table.
Run with configuration
(Required if Parameter file attribute is set)		 Set the configuration, which is derived from the configurations listed within the Parameter file, to use when this node runs. Only parameters in this configuration are set.
Set Environment

Set to True to make the parameters available to the Shell Environment as if you had typed SET or SETENV for that parameter. Otherwise, it is tracked by the Production script only. Environment variables are available to any command line tools that might pull things from their run-time environment. This might include integ.exe. The Set Environment attribute is useful when you have a third-party application that needs environment variables instead of command line options. Defaults to False.

NOTE:

  • The scope of an environment variable set by Production is limited to downstream nodes and their environments.
  • Production environment variables are separate from system level environment variables.
Email Object for failure

Select a predefined mailing list to send an email to if the node fails. The pull-down list is populated with items that can be found in Project Settings > Mailing Lists > Email Templates. See Mailing Lists Tab for information about setting up Mailing Lists and Email Objects.
Email Object for success

Select a predefined mailing list to send an email to if the node succeeds. The pull-down list is populated with items that can be found in Project Settings > Mailing Lists > Email Templates. See Mailing Lists Tab for information about setting up Mailing Lists and Email Objects.
Email Object for warning

Select a predefined mailing list to send an email to if the node generates a warning. The pull-down list is populated with items that can be found in Project Settings > Mailing Lists > Email Templates. See Mailing Lists Tab for information about setting up Mailing Lists and Email Objects.
Failure node Select the next node upon failure. The pull-down list contains all nodes that are on the Task Flow.
Success node Select the next node upon successful completion. The next node automatically populates if a connecting line is set on the Task Flow. The pull-down list contains all nodes that are on the Task Flow.
Working Directory

Specifies the directory in which this node runs. If left blank, the Default Working Directory attribute that is set in the Start Control Node is used. When running a script, Production sets the working directory for the child process to the directory that contains the script, unless the node specifies a different directory.

See Start Control Node.
Default Working Directory

Displays the Default Working Directory that is set the the Start Control Node. If a Default Working Directory is not specified, this attribute is blank. Applies to all nodes.

See Start Control Node.
External File Encoding

Select the file encoding for input files coming into the node. If left blank, Workbench attempts to auto-detect the encoding. It is a best practice to set the encoding when the Parameter file is set to an external file—set the external file encoding to match the encoding of the parameter file.

The specified encoding is also used when saving logs. The encoding might need to be adjusted when using data with high bit Latin-1 characters or Unicode characters.

Each node has an area where you can enter comments.

It is a DI best practice to enter a note for every node in a Production script. These notes can help you or a coworker understand the intent of the node and troubleshoot issues in the future.

ClosedParameter node with comments

Production Parameter Node with comments

Set a name and value for each parameter in the lower ClosedParameters pane.

Production Parameter Node Parameters Pane

This attribute is required if no Parameter file attribute is set.

Select the Integ Calc check box and enter an Integrator Calc expression for the Value field; the Integrator Calc object determines the parameter value. This defaults to cleared which would use the user-defined value.
This attribute and the Parameter file attribute are mutually exclusive.
See Parameters in Production for more information.

When using a file to hold parameters, the file can be defined as single (default) or multiple.

Single Parameter File Type Example

In this example, if the Sales configuration is selected, the Office parameter is set to New York and the Manager parameter is set to John.

Configuration Office Manager
Sales New York John
Marketing Chicago Mike
Engineering Boston Steve
Tech Support Los Angeles Jane

Multiple Parameter File Type Example

If the New York configuration is selected, the CEO parameter is set to John and the CAO parameter is set to Karen.

If the Boston configuration is selected, the CTO is set to Steve.

Configuration Parameter_Name Parameter_Value
New York CEO John
New York CAO Karen
Boston CTO Steve
Green Bay Los Angeles Jane
