About Dive Page Type

The DiveTab dive page presents a cPlan data in a predefined tabular format.

• Dimensions are presented on the leftmost columns. Their headers have a blue background.

• Dive Dimensions appear next. Their headers have a yellow background.

• The rightmost columns show summaries. Their headers have a green background.

Dive Dimension columns display DimCount values, and are used for switching dimensions and adding MultiColumns.

You can dive on Dive Dimensions from the dimension value context menu, switch the dimension that displays, and add QuickViews from dimensions used in the page.

Dive pages include Dive Dimensions in the context menu for each value. Dive pages focus on adding and removing QuickView dimensions.

A dive page can display multiple dimension columns, or MultiColumns. However, users cannot control whether or not the page displays MultiColumns or determine which dimensions are available for display as MultiColumns. Similarly, users cannot control which dimensions appear as options for dimension switching.

Dive pages can switch the primary dimension with other dimensions.

Here is an example of a dive page with one primary dimension and three Dive Dimension columns.

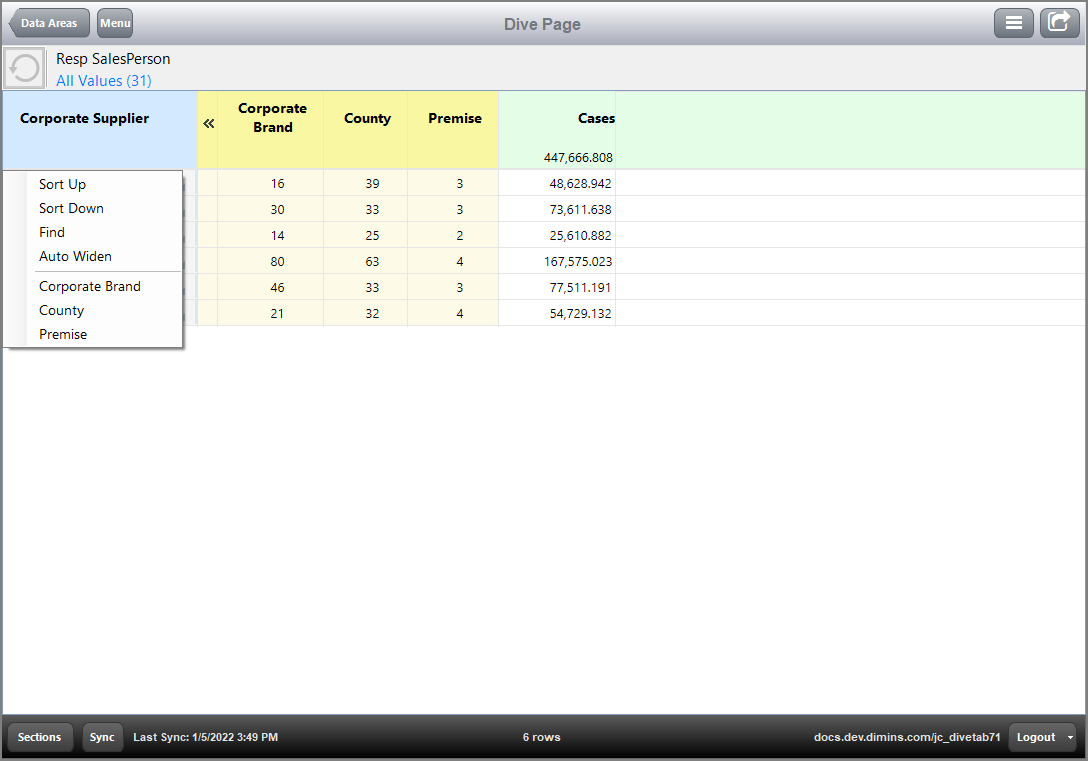

Here is an example of the context menu for the dimension column.

Here is the same dive page with the dimension Corporate Supplier sorted up.

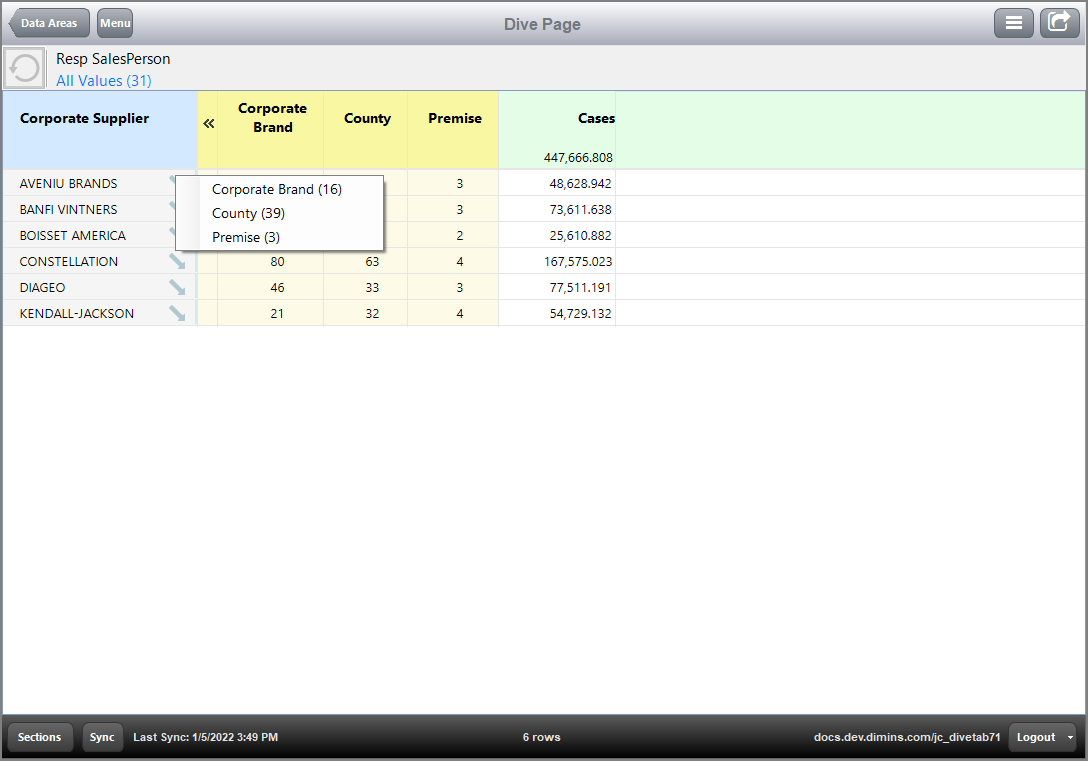

Here is an example of the context menu for a dimension value.

NOTE: A right-click opens the context menu. A blue cell shows that there is a link, and a left-click follows the link to another page.

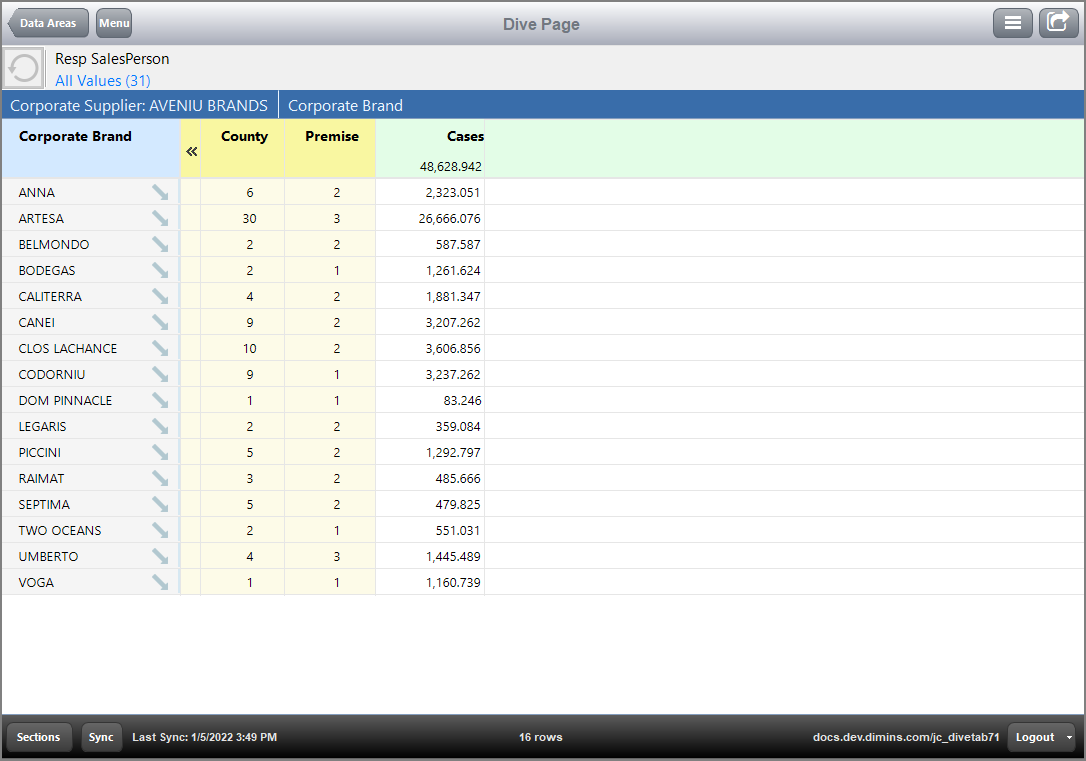

Here is an example of the dive page after using the dive arrow.

Here is an example of the Edit Dimensions and Summary Columns dialog box.
