Detail Dive Samples

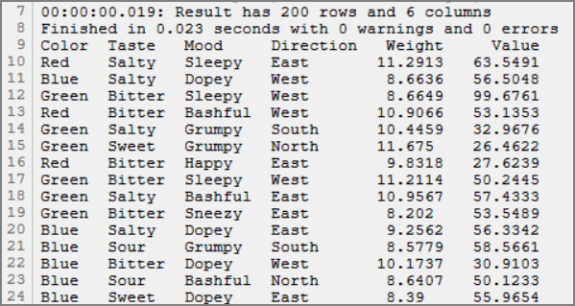

This example displays all detail rows in the cBase without summarization.

// dump entire cbase
dive {
  cplan {
    cbase-input "basic.cbase"
  }
  detail-window {
    all-cbase-columns
  }
}

The following example includes a sort operation on the detail window.

// window operations
dive {
  cplan {
    cbase-input "basic.cbase"
  }
  detail-window {
    all-cbase-columns
    sort {
      column "Value" reverse=true
    }
  }
}

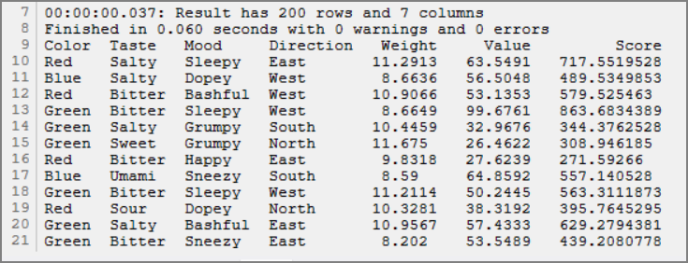

The following example includes a cPlan calculation in the detail window.

// calc
dive {
  cplan {
    cbase-input "basic.cbase"
    calc "Score" `value("Value") * value("Weight")`
  }
  detail-window {
    all-cbase-columns
    column "Score"
  }
}

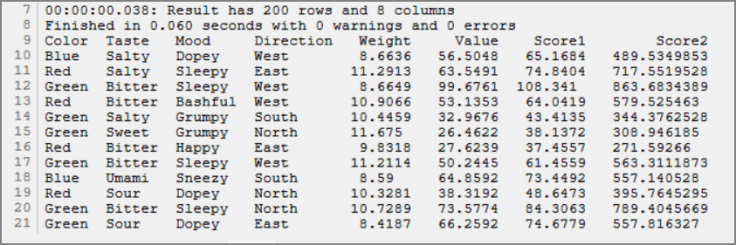

The following example includes a calc-set in the detail window.

// calc-set
dive {
  cplan {
    cbase-input "basic.cbase"
    calc "Score1" `value("Value") + value("Weight")`
    calc "Score2" `value("Value") * value("Weight")`
    calc-set "Scores" {
      calc "Score1"
      calc "Score2"
    }
  }
  detail-window {
    all-cbase-columns
    calc-set "Scores"
  }
}

A detail window operation is limited to one input file. The following example illustrates how to tag and identify the appropriate input file.

// multi-input
dive {
  cplan {
    multilevel {
      cbase-input "basic.cbase" name="one"
      cbase-input "infos.cbase" name="two"
    }
  }
  detail-window input="one" {
    all-cbase-columns
  }
}
