What is a Table?

A table is a type of element that functions similarly to a report page: you can link content, color the text and background, add alert and bullet columns, and more. A table, which is used only by central and overview pages, is coded in the elements block.

When you include a table in a tab block, an id tag is not required. However, when a table is defined in an elements or definitions block, an id is required to reference the table elsewhere in the script.

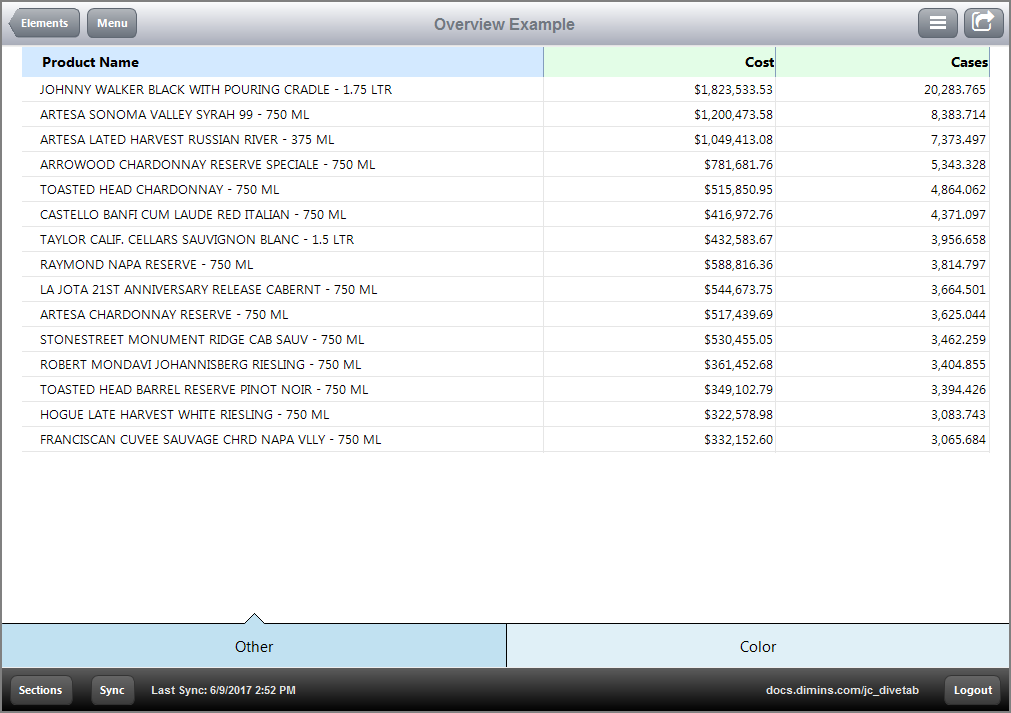

Here is an Closedexample of an overview page using a table in DiveTab.

Example of an Overview using a table.

Here is how the Closedtable appears in the code, within the elements block.

  table id = "tb-product" {
    dimension "Product Name"
    text column = "Cost" {
      value-format "$#,###.00"
    }
    text column = "Cases"
    sort-column "Cases"
    first 15
  }

Here is where the table is referenced within the Closedoverview page code block.

  tab "Other" {
    screen {
      layout {
        vsplit {
          hsplit percent = 100 {
            spacer percent = 2
            element id = "tb-product" percent = 96
            spacer percent = 2
          }
        }
      }
    }
  }

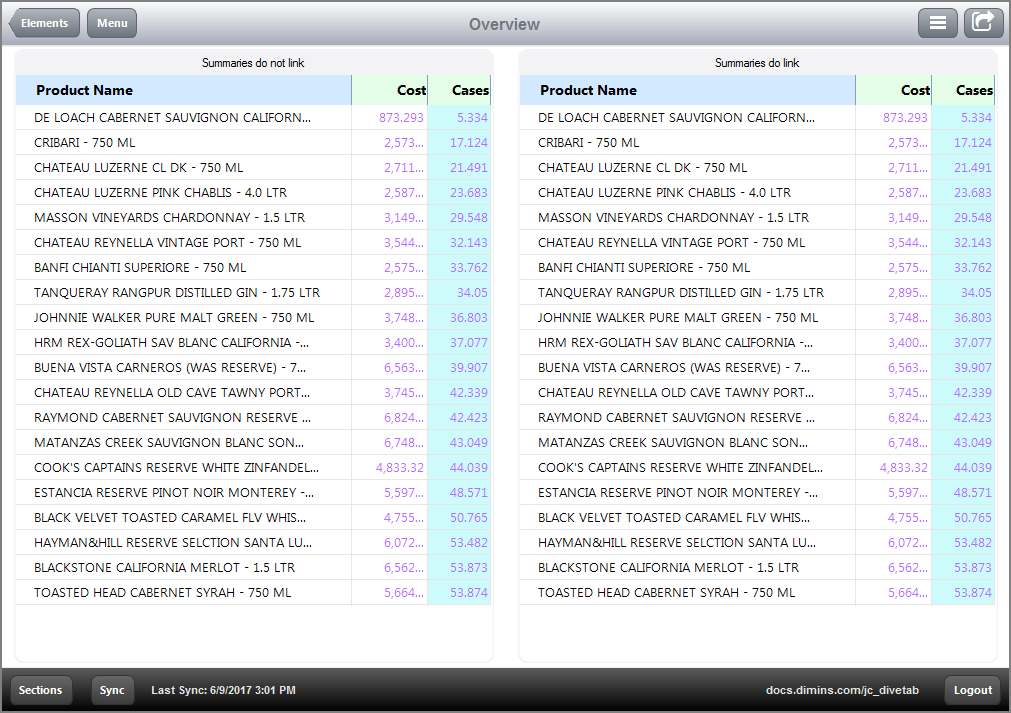

Here is another Closedexample of an overview page using two tables.

Example of an Overview Page using two tables.

Here is Closedthe full code of the overview page.

  overview-page {
    title "Overview"
    cplan "/cplans/basic_timeseries.cplan"

    tab "Tables" {
      screen {
        layout {
          vsplit {
            hsplit percent = 100 {
              spacer percent = 1
              box percent = 48 {
                title "Summaries do not link"
                element id = "tb-product-color"
              }
              spacer percent = 2
              box percent = 48 {
                title "Summaries do link"
                element id = "tb-product-color-link"
              }
              spacer percent = 1
            }
          }
        }
      }
    }

    elements {
      table id = "tb-product-color" {
        dimension "Product Name"
        text column = "Cost" {
          high-color "da6c00"
          low-color "b66dff"
          threshold-value column = "Cost"
          low-threshold 400000
          high-threshold 700000
        }
        text column = "Cases" {
          background-color "cdfafa"
          high-color "da6c00"
          low-color "b66dff"
          threshold-value column = "Cases"
          low-threshold 3000
          high-threshold 4000
        }
        sort-column "Cases" reverse = true
        first 21
      }
      table id = "tb-product-color-link" {
        dimension "Product Name"
        text column = "Cost" {
          high-color "da6c00"
          low-color "b66dff"
          threshold-value column = "Cost"
          low-threshold 400000
          high-threshold 700000
          link {
            map column = "Map Boston"
          }
        }
        text column = "Cases" {
          background-color "cdfafa"
          high-color "da6c00"
          low-color "b66dff"
          threshold-value column = "Cases"
          low-threshold 3000
          high-threshold 4000
          link {
            web-page "www.dimins.com"
          }
        }
        sort-column "Cases" reverse = true
        first 21
      }
    }
  }
