Adding Expand Sets

If you have a series of expand columns that can be reused on multiple pages, it is a best practice to add them to a definitions block as an expand-set within a column-set. This procedure walks through an example. Once you have examined the cPlan and identified the columns to group together, proceed as follows.

1. In your Workbench DiveTab project, select New > DiveTab Module.

   The New DiveTab Module dialog displays.

2. Enter a file Name, and click Finish.

   The graphic version of the module displays.

3. Click Data Area.

   The new data script displays.

4. Add a line to the script before the data-area block.

5. Enter a definitions tag.

6. Between the open and closing braces, enter an expand-set tag followed by an id attribute and value. For example:

   divetab version = "0.0" {
     definitions {
       expand-set id = "es-basic" {
         ...
       }
     }
     data-area id = "data-area-2" {
       ...
     }
   }

7. Enter an expand block, with the desired columns, within the expand-set. Be sure to specify a name. Here is an example of an expand block within an expand-set.

     expand-set id = "es-basic" {
       expand "Sales and Cases" {

         text column = "Net Sales" {
           value-format "$#,###.00"
         }
         text column = "Discount" {
           value-format "$#,###.00"
         }
         text column = "9 Liter Cases"
         text column = "BATF Cases"
       }
     }

8. Define a column-set that uses the new expand-set. Specify the name of the primary column, which is the column that includes the expand option in the context menu. Here is an example of a column-set.

     column-set id = "cs-basic" {
       text column = "Cost" {
         value-format "$#,###.00"
         expand-set id = "es-basic"
       }
     }

   NOTE: You can also reference the expand-set within the data page. Here is a report page referencing an expand-set.

     report-page {
       title "Expand Example 1"
       cplan "/cplans/basic_102.cplan

       dimension "Resp Team"
       dimension "Resp SalesPerson"

       text column = "Cost" {
         value-format "$#,###.00"
         expand-set id = "es-basic"
       }
     }

   Not including the expand-set within a column-set means that the same set of expand columns can be used for different summary columns.

9. Add title and icon tags for the data-area block.

10. Enter a report-page block under sections, using the column-set with the expand columns. Here is an example of a report-page block.

      data-area id = "data-area-2" {
        title "Expand Example"
        icon "/divetab/images/menu icons/22.png"
        sections {

          report-page {
            title "Expand Example 2"
            cplan "/cplans/basic_102.cplan"

            dimension "Resp Team"
            dimension "Resp SalesPerson"

            column-set id = "cs-basic"
          }
        }
      }

Here is the result of the code in DiveTab with the context menu visible.

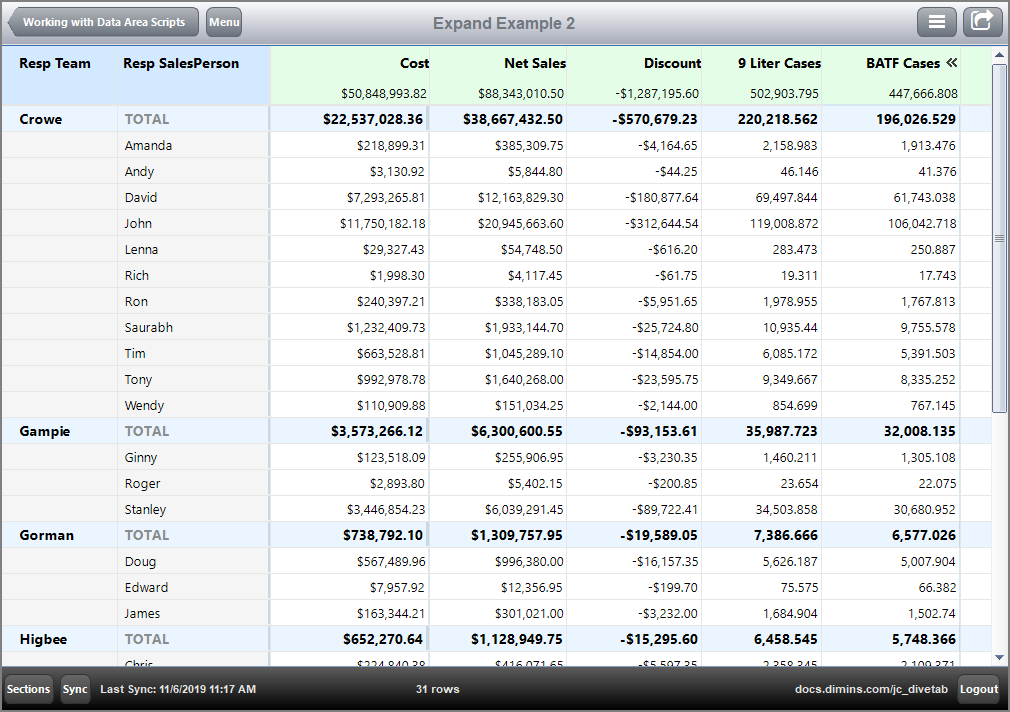

Here is the report page with expand columns visible.

Notice that the 9 Liter Cases and BAFT Cases columns use the default column formatting, that is, no value-format is specified with the text column tags. For more information on how to change the column formatting.

See also: Formatting Column Data
