Cross Page Code Samples

The following code sample creates a cross page with two summaries.

  cross-page {
    title "Cross Page 1"
    cplan "/cplans/basic_101.cplan"

    dimension "Corporate Brand"
    cross-dimension "Resp Team"

    text column = "Cost" {
      value-format "$#,###.00"
    }
    text column = "Cases" {
      value-format "#,###.00"
    }
  }

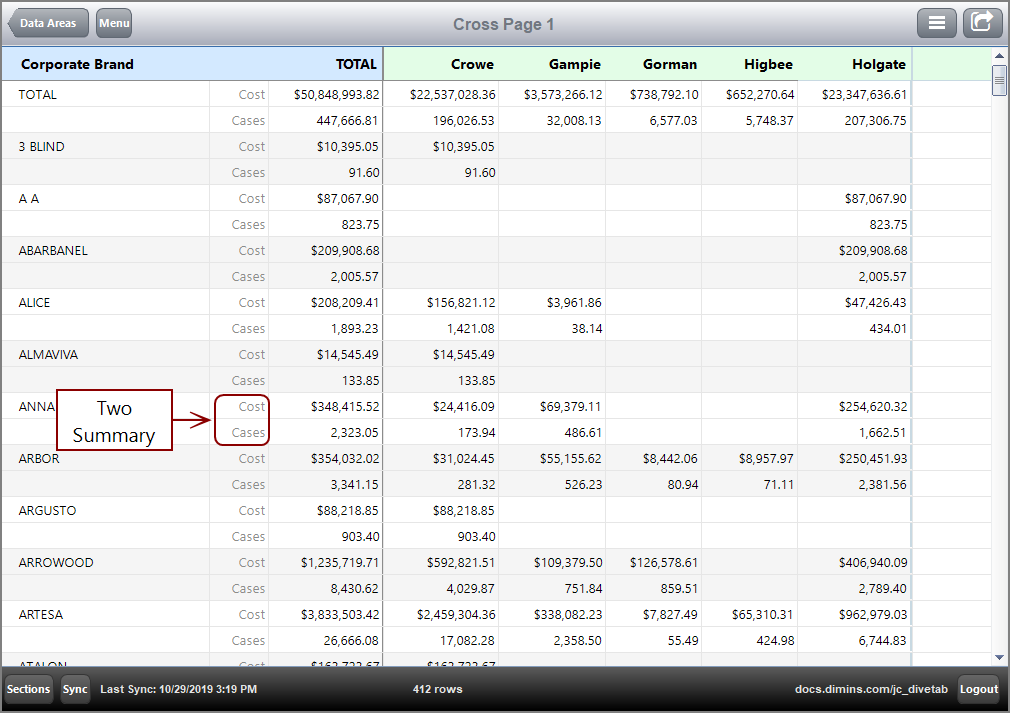

This is the result of the code in DiveTab.

Here is a code sample for a cross page that uses one summary column.

  cross-page {
    title "Product Cases by Premise"
    cplan "/cplans/basic_101.cplan"

    dimension "Product Name"
    cross-dimension "Premise"

    no-summary-column
    text column = "Cases" {
      value-format "#,###.00"
    }
  }

TIP: The no-summary-column tag hides the summary name. You can include the column name in the page title for clarity.

Here is the result of the code in DiveTab.

NOTE: Notice that the names of the summary columns are not displayed.

Here is another code sample for a cross page that uses QuickViews, as well as specified column headings for the Cost and Net Sales summaries using the text tag.

  cross-page {
    title "Cross Page 2"
    cplan "/cplans/basic_101.cplan"

    quickview-set {
      cplan "/cplans/basic_101.cplan"
      dimension-quickview "Premise"
      dimension-quickview "Resp Team"
    }
    dimension "Premise"
    cross-dimension "Resp Team"

    text column = "Cases" {
      value-format "#,###.00"
    }
    text "Cost in Dollars" column = "Cost" {
      value-format "$#,###.00"
    }
    text "Net Sales in Dollars" column = "Net Sales" {
      value-format "$#,###.00"
    }
  }

TIP: You can use a dimension-quickview that is not included as a dimension or a cross dimension. In this cross page example, the Dimension QuickViews Premise and Resp Team serve as filters, initially displaying all values.

This is the result of the code in DiveTab.
