Installing ProDiver

ProDiver is the desktop analytics client of the Diver Solution and Platform. With ProDiver, you can view and analyze model and cBase data with a graphical user interface. You can create markers in ProDiver and use those markers to build dashboards and presentations in DivePort.

NOTE: You need to be an administrative user to install the software.

The ProDiver installer places a copy of the Setup Wizard in the Program Files directory for uninstalling purposes.

To install ProDiver:

  1. Navigate to the DI\Solution\downloads directory.

  2. Double-click the ProDiver-Setup.exe file.

    The User Account Control dialog box opens, asking you to confirm making changes to your device.

    NOTE: Depending on your Windows version and user account settings, you might see the Open File - Security Warning dialog box instead. Confirm that you want to open and run the executable file.

  3. Click Yes.

    The ClosedProDiver Setup Wizard dialog box opens.

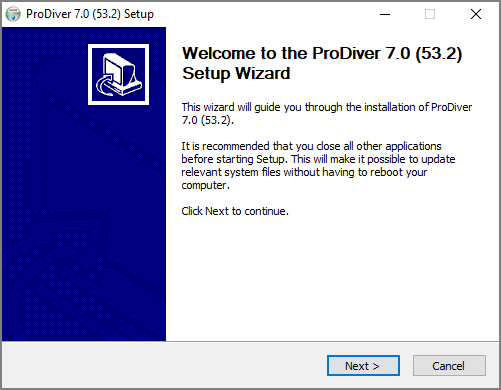

    The ProDiver Setup Wizard window.

  4. Review the setup instructions, and click Next.

    The ClosedInstalled ProDivers page displays.

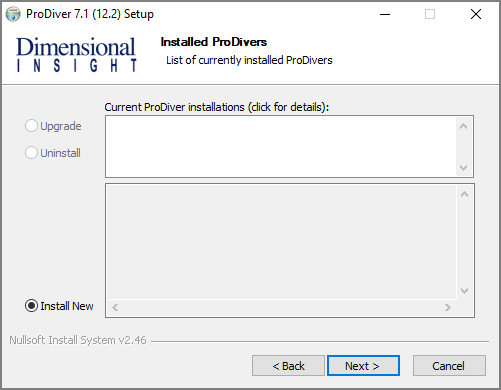

    The Installed ProDivers window.

  5. Select the Install New option.
    This page lists any existing ProDiver installations, which you can choose to Upgrade or Uninstall. If this is the first installation, Install New is selected by default.

  6. Click Next.

    The ClosedProDiver Install Path page displays the default installation path. For example, C:\Program Files (x86)\Dimensional Insight\ProDiver. Make changes if necessary.

    The ProDiver Install Path window.

  7. Click Next.

    The ClosedReady to Install page displays a summary of the pending installation.

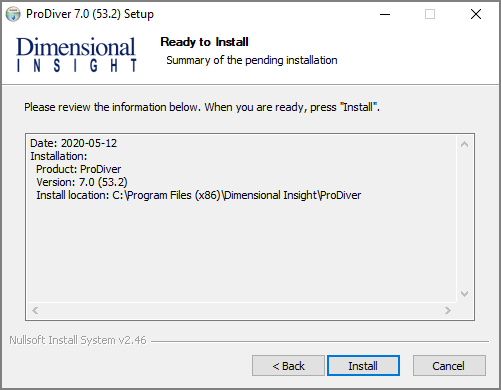

    The Ready to Install window.

  8. Click Install to install the ProDiver software.
    When complete, the wizard displays the ClosedInstallation Complete dialog box.

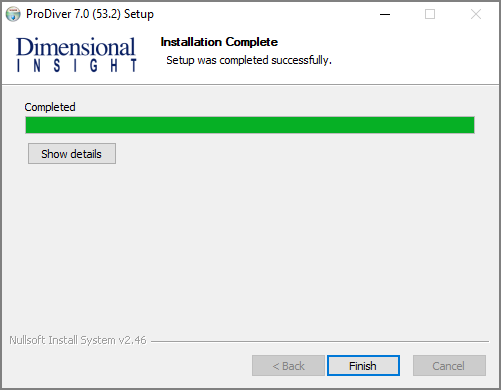

    The Installation Complete window.

    NOTE: To view a running summary of the installation process, click the Show details button.

  9. Click Finish to close the installation wizard.

    NOTE: When you run the ProDiver installer for a new installation or an upgrade, it associates dlk files with the ProDiver executable file for opening ProDiver from DivePort.
