Tips for Customizing Hover Text

Some map and charts provide the option to specify a customized tooltip that opens when a user places the pointer on a data object. When available, a Hover option is included on the Edit <portlet> page under More settings.

Customize hover option on an edit chart page.

Click Hover to open a Closeddata box in which you can enter HTML content.

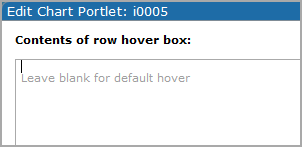

Text box to enter tooltip text.

Consider the following:

  • When developing HTML content, consider using a text editor or a web design tool to write the code, and then use a copy and paste operation to insert the text into the Contents of hover box dialog box.
  • If you use Unicode characters, be sure to use the proper encoding and standards.
  • You can use row, column, portlet, and page macros in the tooltip. However, links and other click actions are not supported.
  • When used in macros, the <column name> is not case-sensitive.

Example using macros

The following HTML example uses both hardcode and crosslinked macros to display the measure name and measure value in the tooltip.

<b>$(ROW_STRING "product name")</b>

<table><tbody>

<tr>

<td>$(MEASURE_LABEL "Units"):&nbsp;</td>

<td>$(ROW_STRING "Units")</td>

</tr>

<tr>

<td>$(MEASURE_LABEL "Units"):&nbsp;</td>

<td>$(ROW_STRING $(MEASURE_NAME \"Units\"))</td>

</tr>

<tr>

<td>Revenue:&nbsp;</td>

<td>$(ROW_STRING "__mf_m_Revenue")</td>

</tr>

<tr>

<td></td>

<td>$(ROW_STRING "product family")</td>

</tr>

</tbody></table>







←Hardcode units value







←Crosslinked measure







←Hardcode a different measure









←Add a dimension

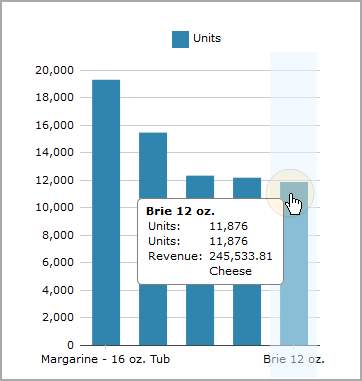

Custom tooltip on a chart.

For information about macros that are specific to hover text, see Built-In Macros, Limited Macros.
