Analysis Portlet Options

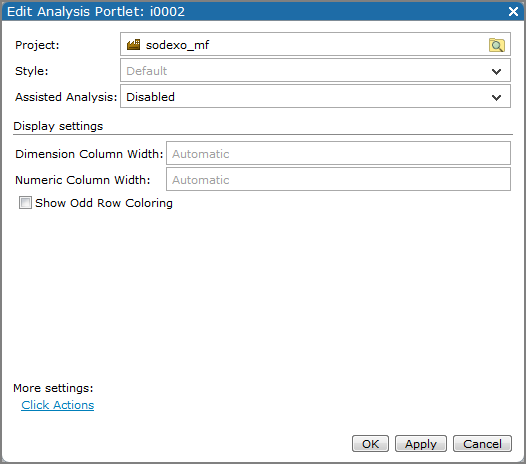

Edit analysis portlet dialog box.

Option Description
Project Identifies the Measure Factory project.
Style

Specifies the analysis portlet style. Options are:

  • Default
  • Custom
  • Any defined custom styles
Assisted Analytics

Available if the optional license is active. Specifies if assisted analytics is enabled for this portlet, and which analysis mode opens initially. Options are:

  • Disabled—Assisted analytics is disabled for this portlet.

  • Enabled (Dive First)—The portlet initially opens in the standard Closeddive mode.

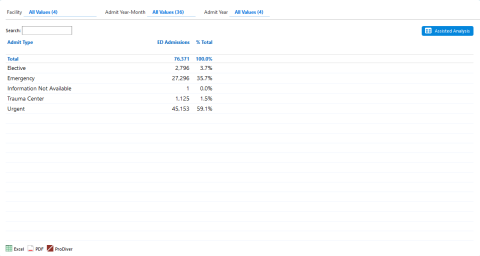

    Sample Analysis portlet in standard dive mode.

  • Enabled (Analysis First)—The portlet initially opens in the Closedanalytics report mode.

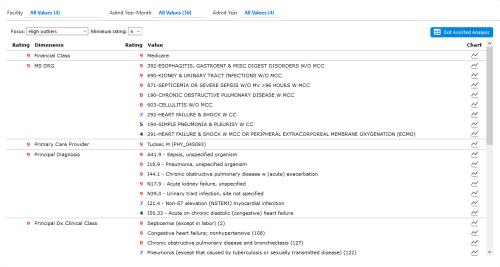

    Sample Analysis portlet in analytic report mode.

Dimension Column Width Specifies the width, in pixels, of the dimension column. Dimension names that are longer that the specified column with are truncated. The default, Automatic, sets the width as large as the longest dimension name.
Numeric Column Width Specifies the width, in pixels of all numeric columns. The default, Automatic, sets the width for each column to fit the data or label.
Show Odd Row Coloring

Specifies that the row background color shifts for each row. Even rows default to the page background color (windowBackgroundColor) in the underlying skin.

Specifies preferences for printed headers and footers on files that are exported as a result of Excel or PDF click actions.

Matrix portlet print settings dialog box.

See also:
