Editing Map Portlets

To edit a map portlet:

  1. Browse to the page that contains the portlet that you want to edit.

  2. On the DivePort toolbar, click Edit to unlock the page and enable edit mode.

  3. Right-click the portlet that you want to edit, and then on the context menu, click Edit.

  1. Continue as follows:

  1. On the Edit Map Portlet, Street Layer Closeddialog box, under Data Layers, place your pointer on the layer that you want to edit, and then click the Edit this layer icon Edit this layer icon. or double-click the layer name.

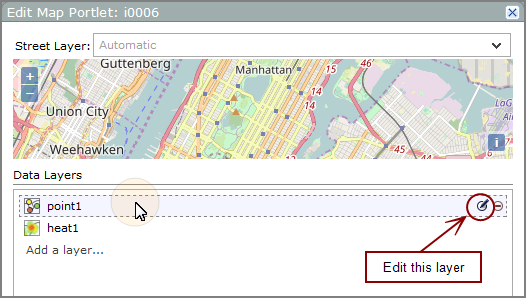

    Edit map portlet, street layer dialog box showing the location of the edit this layer icon.

  2. Edit the options that you want to change, and then click OK.

    1. On the Edit Map Portlet, Street Layer Closeddialog box, under Data Layers, click Add a layer.

      Edit map portlet, street layer dialog box showing the location of the add a layer option.

      The Select a layer type page of the Edit Map Portlet wizard opens.

    2. Follow the instructions in the wizard.

    1. On the Edit Map Portlet, Street Layer Closeddialog box, under Data Layers, place your pointer on the layer that you want to remove, and then click the Remove this layer icon.

      Edit map portlet, street layer dialog box showing the location of the remove this layer icon.

      A confirmation message displays Are you sure you want to delete this layer?

    2. Click Yes.
    3. On the Edit Map Portlet dialog box, click OK.
    4. On the toolbar, click Save to exit edit mode and lock the page.
