Adding a Tooltip and Hotspot

You can add custom tooltips to your pages using the hotspots feature of the image portlet.

If the tooltip relates directly to information on part of an image, you have the option to edit the image to highlight the areas of interest before adding it to DivePort. The following example shows several areas of information. The two areas with orange borders indicate the existence of tooltips.

Page with a hotspot and a tooltip.

To add a tooltip to an image portlet:

  1. In DivePort, browse to the page that contains the portlet that you want to edit or add.

  2. On the toolbar, click Edit to unlock the page and enter edit mode.

  3. Do one of the following:

    • To edit an existing image portlet, double-click the portlet.
    • To create a new image portlet, click the Edit the page contents chevron, and then click Add a portlet > Image Portlet > OK.

    The Edit Image Portlet Closeddialog box opens.

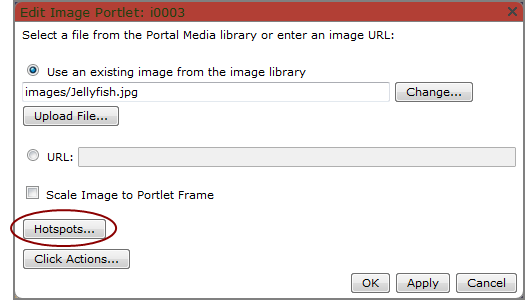

    Example of an edit image portlet dialog box.

  4. Click Hotspots.

  5. The Hotspots Closeddialog box opens with the image displaying in the main section, and options displaying in the left pane.

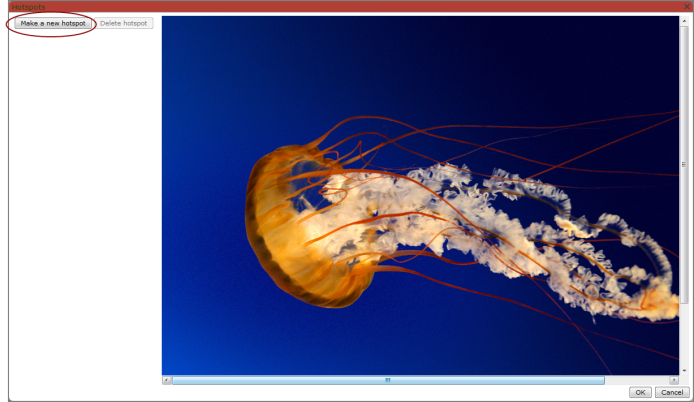

    Hotspots dialog box showing the selected image portlet and location of the new hotspot option..

  6. Click Make a new hotspot.

    The Hotspots Closeddialog box expands.

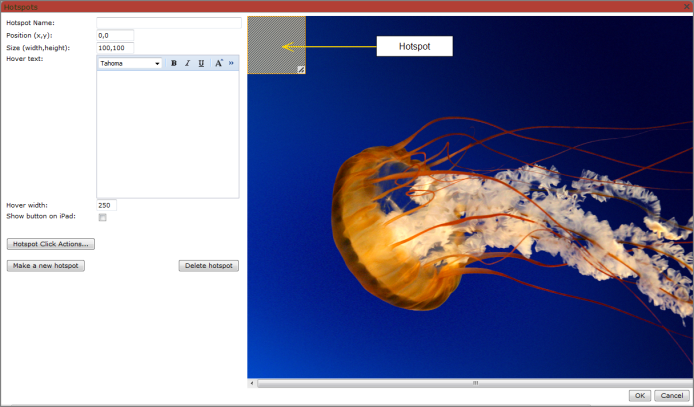

    Example of the expanded hotspot dialog box and image.

    A square appears in the upper right corner of the image. This is the hotspot.

  7. Set the size and position of the hotspot one of two ways:
    • Use a click-and-drag operation to reposition the hotspot and use the resize icon to change the width/height ratio.
    • On the dialog box, set the hotspot position relative to the top left corner of the image Position (x,y), and the hotspot size Size (width, height) in pixels.
  8. Optionally, enter a name in the Hotspot Name box.

  9. Enter the tooltip text in the Hover text Closedbox; you can use the edit tools to change the font and style.

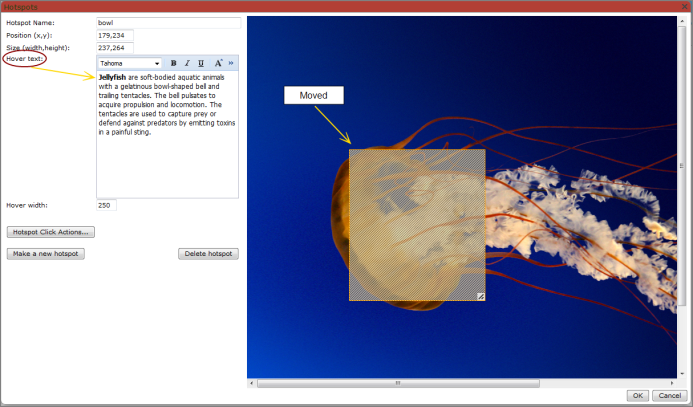

    Hotspots dialog box with repositioned hotspot and hover text added.

  10. Optionally, in the Hover width box, change the width of the tooltip box in pixels.
  11. To add another tooltip, repeat steps 5 through 9. An image can have multiple tooltips.
  12. Click OK to close the Hotspots dialog box and save the tooltip.
  13. Click OK to close the Edit Image Portlet dialog box.
  14. On the toolbar, click Save to exit edit mode and lock the page.

Place the pointer over the part of the image covered by the tooltip. After one second, the tooltip appears.

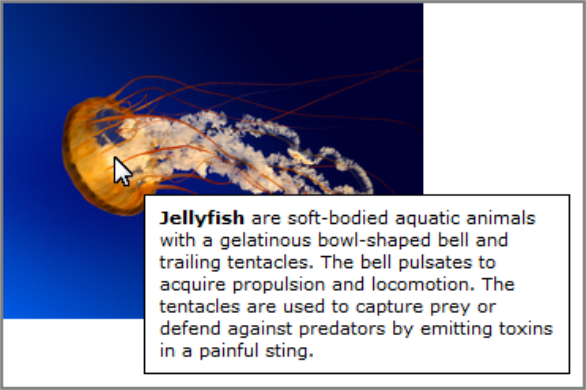

Image portlet with a tooltip.

See also Image Portlet Options.
