DownLink and Maximize Click Action Options

You can use DownLink and Maximize click actions with marker portlets only.

An Edit Click Actions dialog box with type set to DownLink and Maximize.

Property Description
Type Specifies the click action type.
Scope Specifies the click action scope. Row is the only option.
Label Specifies the label that displays in the click action context menu. The default is DownLink and Maximize.
DownLink Settings

Specifies the target marker, Spectre Dive file, or DiveBook for the DownLink. If you add DownLinks to multiple markers in a chain, the dialog boxes stack on top of each other, as in the following image:

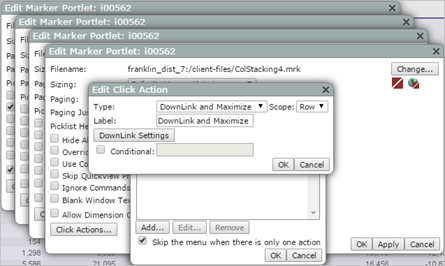

An Edit Click Actions dialog box whose type is set to DownLink and Maximize over a Click Actions dialog box and four tiled Edit Marker Portlet dialog boxes.

Link Fields Available with link fields are enabled in the portaldb.json file. Opens the Link Fields dialog box, which you can use to select columns from the source. Values from these columns are added to the down link parameters and are shared with the linked portlet instance.
Conditional

Specifies that the click action is available only if the value in the column specified in the adjoining box is a non-zero number or non-empty string. For example, if the option is set as follows: Setting the conditional option

  • On rows where the Current vs Last +/- column is not 0 or blank, the click action appears as a row-scoped click action.

  • On rows where the Current vs Last +/- column value is 0, blank, or an empty string; the click action does not appear as a row-scoped click action.

This option is cleared by default. For more information, see About Conditionalized Click Actions.
